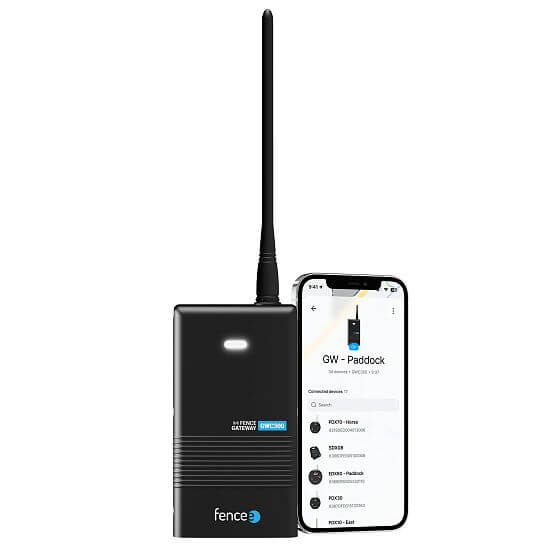

Product´s description Central control device FENCE CELLULAR GATEWAY GWC300
Cellular Gateway GWC300 for all Smart Farm fencee Cloud devices.
Unlimited control from anywhere thanks to LTE and eSIM technology
Connect to the Internet and Cloud using LTE and eSIM technology from absolutely anywhere. Cellular network NB-IoT, GPS, BT and also RF technology - compatible with absolutely all Smart Farm fencee Cloud devices.
Control up to 20 Smart Farm fencee Cloud devices
One cellular Gateway GWC300 can control up to 20 Smart devices fencee.
Always up-to-date fencee Cloud software
Keeping software always up-to-date with the possibility of upgrading.
Mains 230 V adapter and battery backup
Power supply via 230 V and battery backup in case of power failure.
| Technical parameters | |
|---|---|
| Power source | 230 V / 50 Hz, 14 VDC |
| Energizer consumption 230 V | maxi 300 mA |
| Backup battery | 3,6 V |
| fencee Cloud connection | |
| Sound warning system | |
| External antenna SMA connector | |
| Number of connected devices | up to 20 |
| Transmission frequency | 869,525 MHz |
| Transmitting power | +22 dBm |
| Base antenna range | up to 10 km |
| Range with external antenna | up to 30 km |
| BLUETOOTH | 2.4GHz |
| NB-IoT | |
| Cat M1 | |
| 2G | |
| LTE | |
| GPS | |
| Dimension | 78 × 144 × 42 mm |
| Weigth | 380 g |
Manuals and files for downloading
Leaflet - CELLULAR GATEWAY GWC300FAQ
- Troubleshooting
- How to use a grounding quality terminal and terminal with reduced output?
- fencee Cloud application
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
