Product´s description Portable battery electric fence energizer fencee battery DUO BD10
The 1 J battery electric fence is a compact, efficient and mobile solution for the protection of animals such as horses, dogs, goats and poultry. This portable electric fence is perfect for small farms, gardens or orchards where you need to keep animals safe or prevent the entry of pests such as martens, rabbits, otters, cats and herons.
Bluetooth compatibility for controlling the fence with your phone
Connect the energizer via the Bluetooth fencee app and control electric fence with your mobile phone.

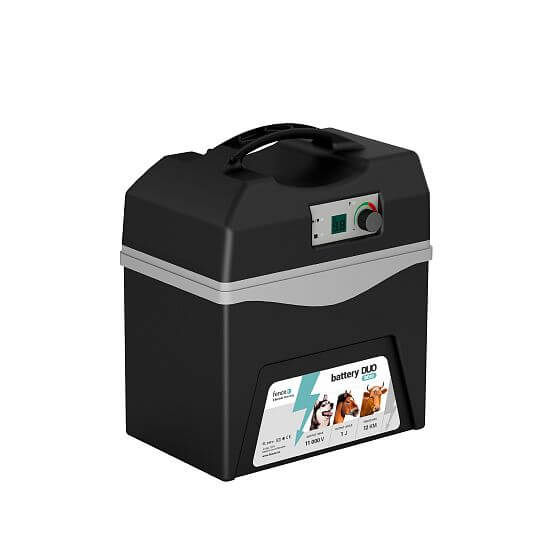

Compact battery energizer for electric fence 1 J
Mobile battery energizer for electric fencing with display to indicate fence voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs for device function and battery status. The device has a combined power supply, so it can also be powered by a 230 V mains adapter.
Box with space for a 12 V battery with a capacity of 44 Ah
The battery-operated fence has a large compartment for a 12 V battery with a capacity of 44 Ah. The battery is built into the housing and is protected from UV radiation and weather conditions. The person carrying the battery fence is protected from contact with the battery. When the battery is completely discharged, the power supply automatically switches off to prevent damage to the battery.
Energy-saving mode efficient use of the battery
A microprocessor controls the operation of the device and ensures maximum efficient use of the battery. The power saving mode allows a long press of the ON/OFF button to switch the power supply to a slower mode, where the interval between pulses is approximately twice as long. Switching to power saving mode significantly saves battery power.
Mobile waterproof design with practical handle
The battery-powered electric fence is designed for harsh conditions and long-term outdoor use. Coverage IP44. The input connector for connecting the mains adapter is waterproof. Integrated lightning protection.
Option to connect a 30 W solar panel
A 30 W solar panel can be connected to the device to ensure continuous operation anywhere in the pasture.
Package contents:
- fencee 1 J battery energizer
- adapter fencee DUO 14 V 1.5 m
- 100 cm connecting cable (eye-ring)
- ground cable 150 cm (eyelet to eyelet)
- grounding rod for the fence
- fencee warning plate
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 1,2 W |
Energizer consumption 12 V | 20 mA - 100 mA |
Output energy | 1 J |
Input energy | 1,4 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 5000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LCD display | |
Power Save mode | |
TEOR. max. CEE | 42 km |
Low vegetation | 12 km |
Medium vegetation | 6 km |
High vegetation | 1,5 km |
Earthing 1 m | 1× |
El. fence nets | 5× |
Weight | 2920 kg |
Dimension | 38 × 31 × 21 cm |
