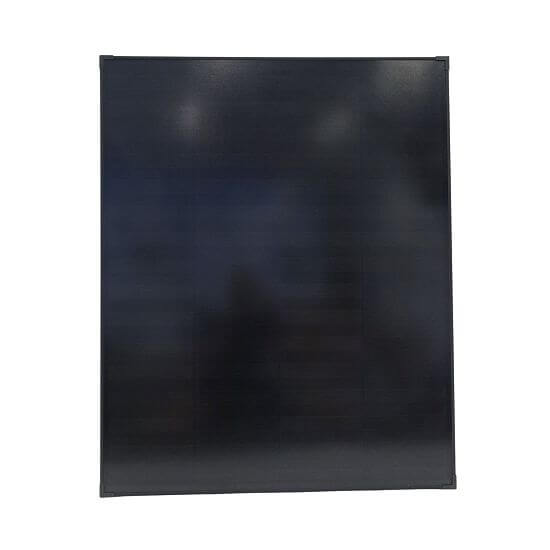

Solar panel 200 W for electric fence

Photovoltaic solar panels convert the sun's light energy into DC electricity. The solar panels are used to recharge a 12 V battery. Depending on the power and consumption of the generator , it is recommended to choose an adequate panel power. This is to ensure that the battery can be recharged even on less sunny days.

Do not connect the solar panel directly to the generator or the battery - always use a regulator to avoid destroying the device.

The 200 W solar panel is suitable for fence power supplies with an output power of over 7 J

Solar panel for recharging the battery of the electric fence power supply. The 200 W solar panel is suitable for fence power supplies with an output power of over 7 J.

We recommend to mount the panels using special mounting brackets on the battery and fence source boxes we offer or on brackets - ground screws for solar panels.

Solar panel placement, installation and maintenance

Select a suitable, unshaded location for mounting the solar panel. The panel must be oriented towards the south, as perpendicular to the sun as possible, at an angle of approximately 40°. Connect the connection connectors with the correct polarity to the controller. Keep the panel surface clean. If necessary, clean the glass surface of the panel with water and a soft sponge or cloth.

Parameters of the 200 W solar panel:

• Maximum power (Pmax) 200 W
• Maximum current (Imp) 11.02 A
• Maximum voltage (Vmp) 18.15 V
• No-load voltage (Voc) 21.57 V
• Short circuit current (Isc) 11.69 A
• Dimensions (mm) 1100 × 890 × 30
• Operating temperature range -40°C ~ +85°C
• Standard Test Aditions AM=1.5 E=1000W/m2 TC=25°C

Advantages of 200 W solar panel:

• The efficiency of high quality and high efficiency monocrystalline silicon wafers can reach up to 22%.
• Shingle welding process, beautiful and neat.
• Using tempered glass, high transparency.
• EVA anti-corrosion treatment effectively protects the battery panel.
• Strong and wind and snow resistant, unique technology to prevent water from freezing in the frame and deformation.
• Packed in one box, with protective corners on all four corners.
