Functions of product Expert solar fence kit - Complete security box + energizer power DUO 1 J, 40 W panel, polytape 20 mm

Combined operation Power Switching ON/OFF button LED diodes LED Bargraph Battery management DIN rail ST transformer

Product´s description Expert solar fence kit - Complete security box + energizer power DUO 1 J, 40 W panel, polytape 20 mm

A practical solution for operating the fence in places without electricity during the season. Solar-powered fence kit suitable for electric fences up to 8 km.

Security box for energizer and battery, Mounting mandrel and 10 A regulator included

Security box for electric fence energizer and battery. Electrifiable metal battery box with robust mounting mandrel. The box can be connected to the fence energizer, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee energizer. 10 A regulator for 40 W solar panels.

Security box features:

robust box made of galvanized steel
stable mounting mandrel to the box
internal ground connection for the fence energizer
all cables inside the box
high voltage box - excellent protection against theft
insulated keys for safe unlocking of the box
external dimensions of the box: 37 × 37 × 34,5 cm (W×D×H)

1 J fence energizer with combined power supply

Electric fence energizer 12/230 V with 1 J. The fence can be used anywhere thanks to the solar battery charging. BrightLight LED on the front of the device indicates the operation of the energizer. Possibility to switch the power to 50 %, SafeShock technology, ON/OFF button for safe energizer control and several other features of fencee power DUO PD energizers.

Combined energizer fencee power DUO PD10

40 W solar panel for electric fencing

The location of the solar panel must be chosen to be south facing and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel.

Mounting bracket for attaching the 40 W solar panel to the security box

Mounting brackets for mounting the 40 W solar panel on a security box. Consists of 2 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.

Instructions for assembling the mounting bracket

Accessories for assembling a small electric fence

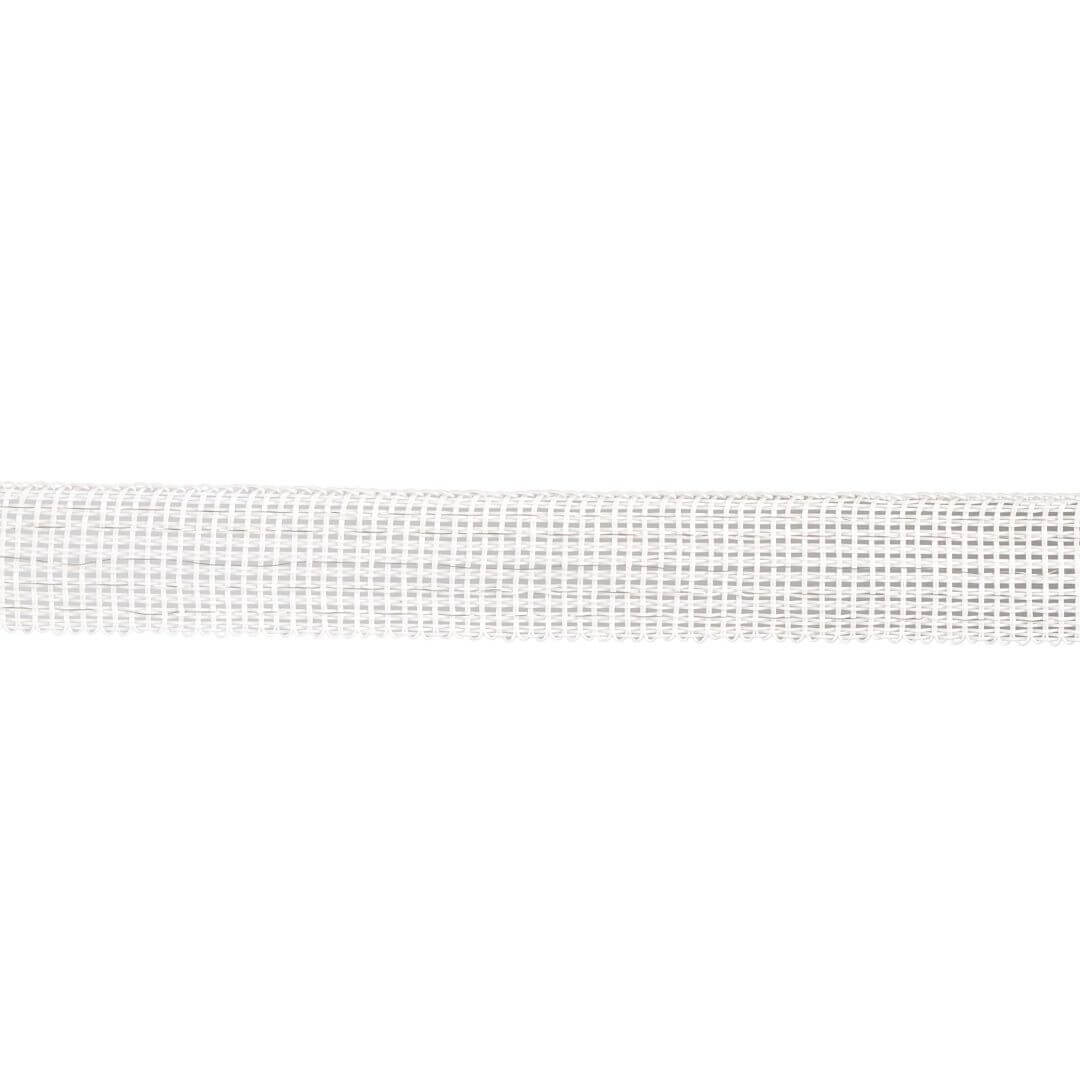

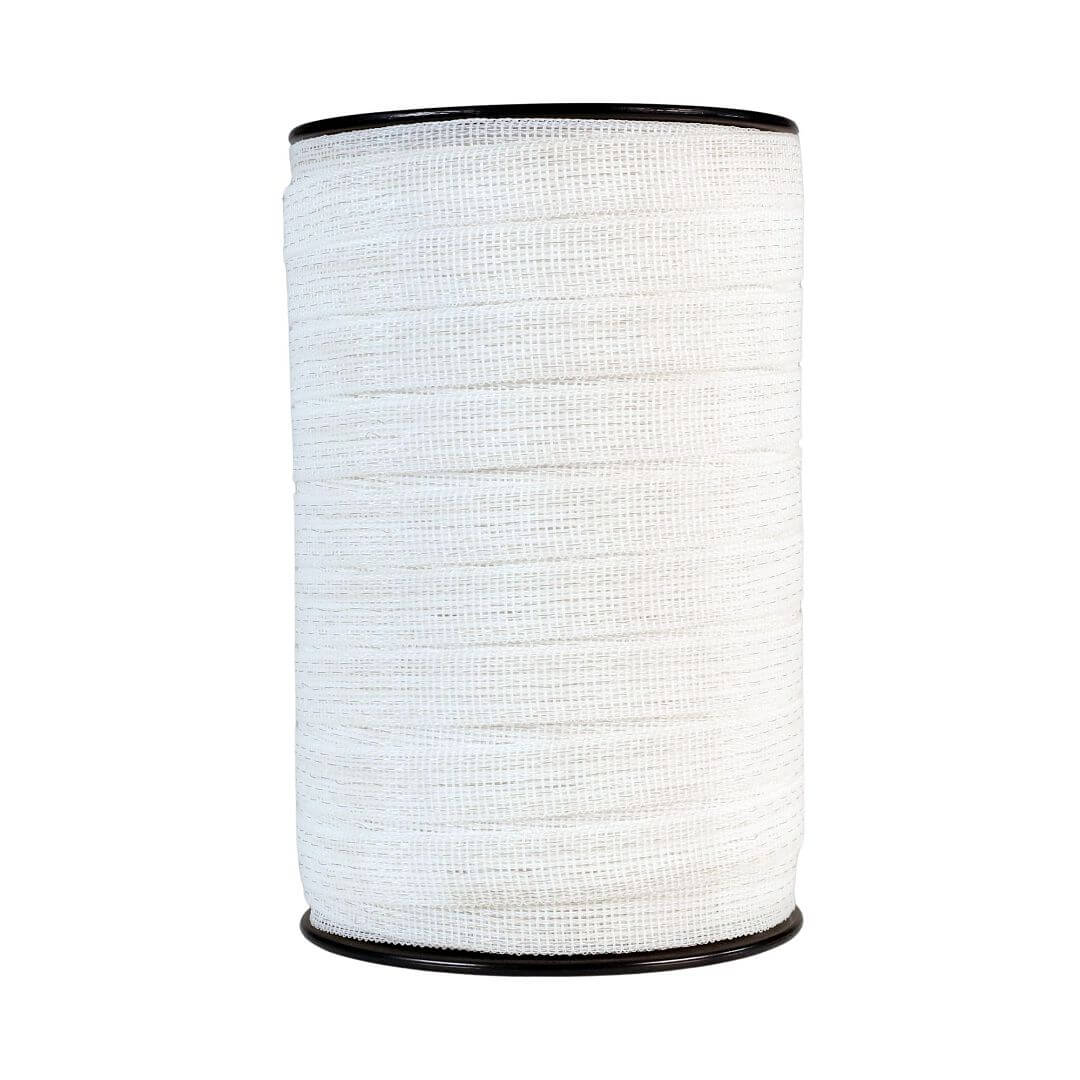

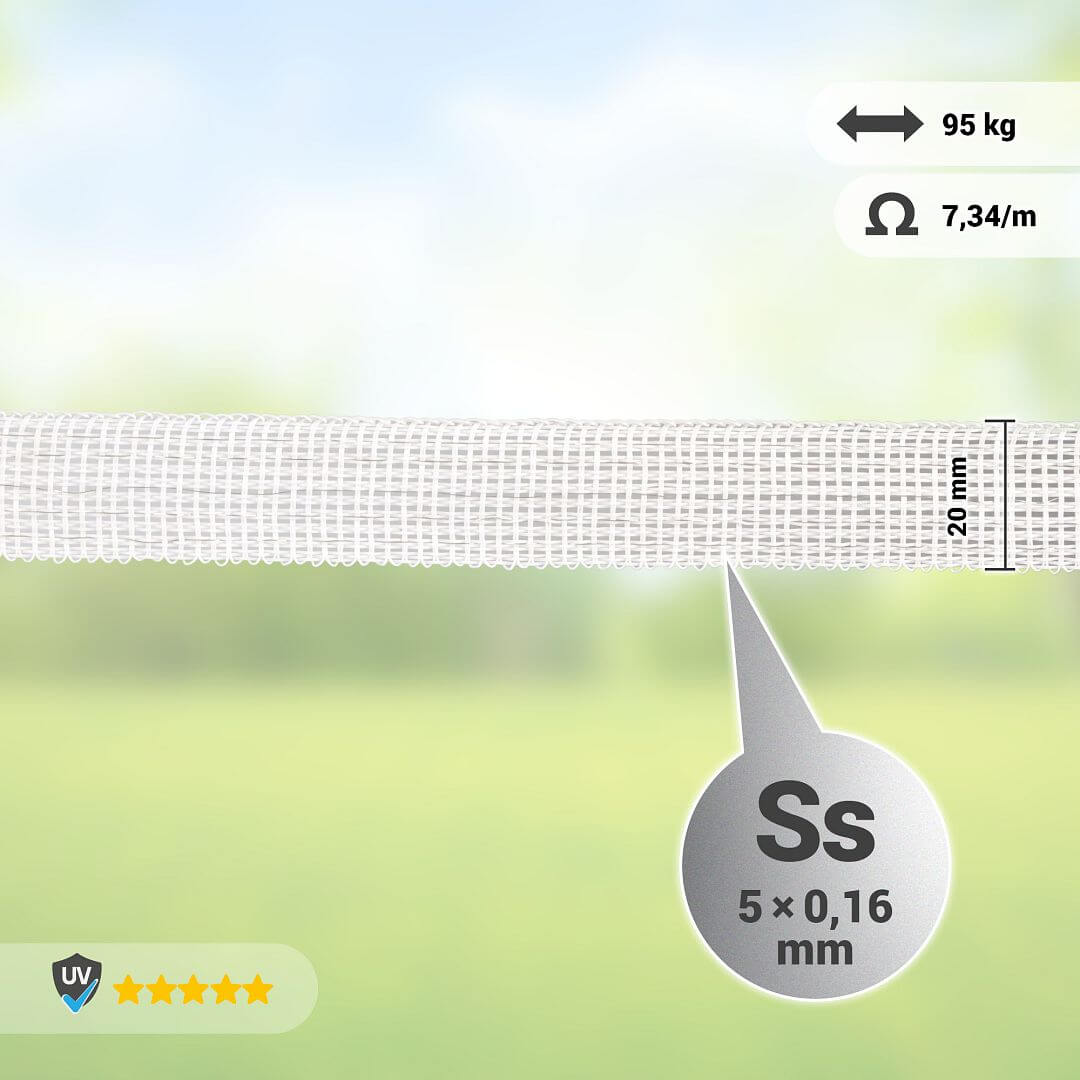

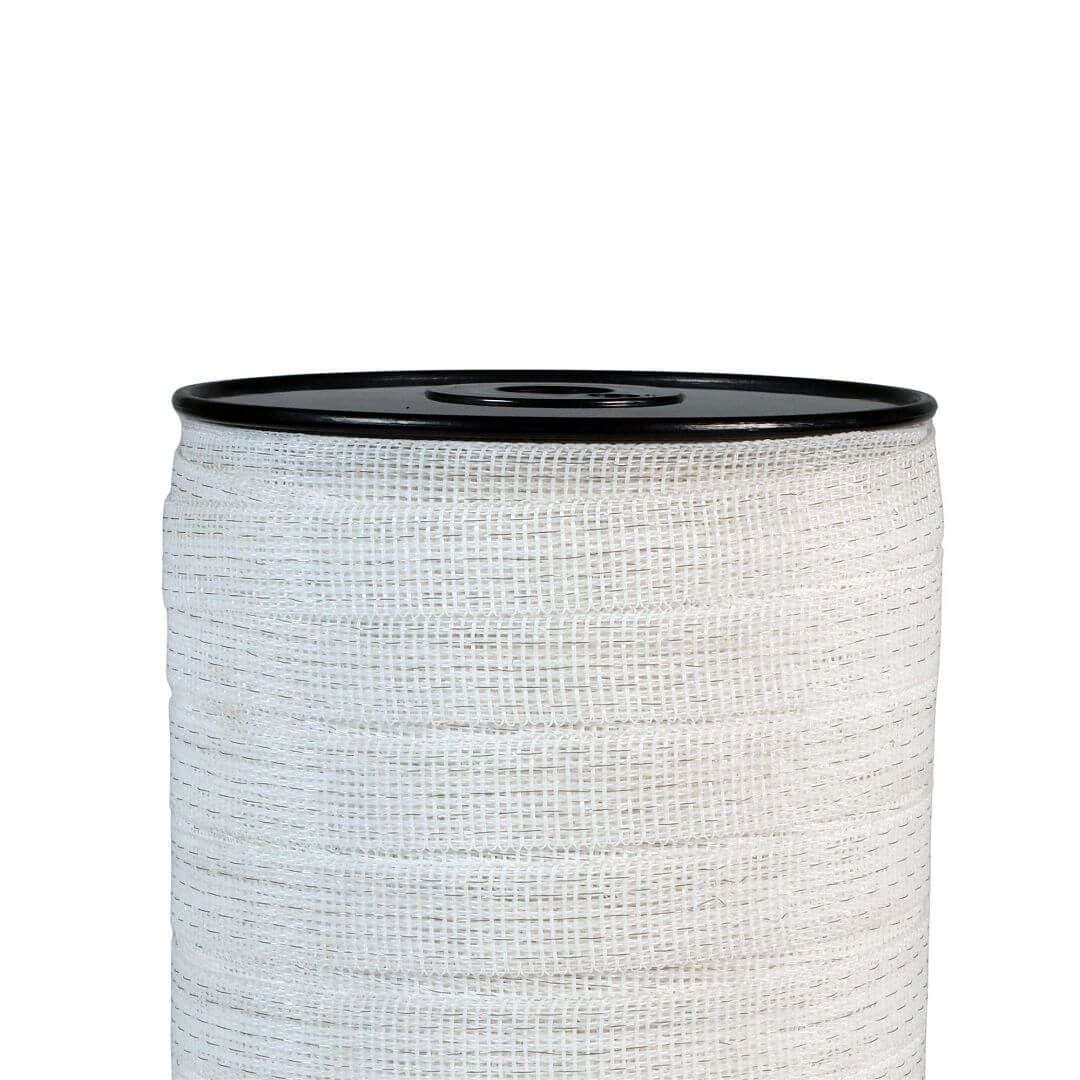

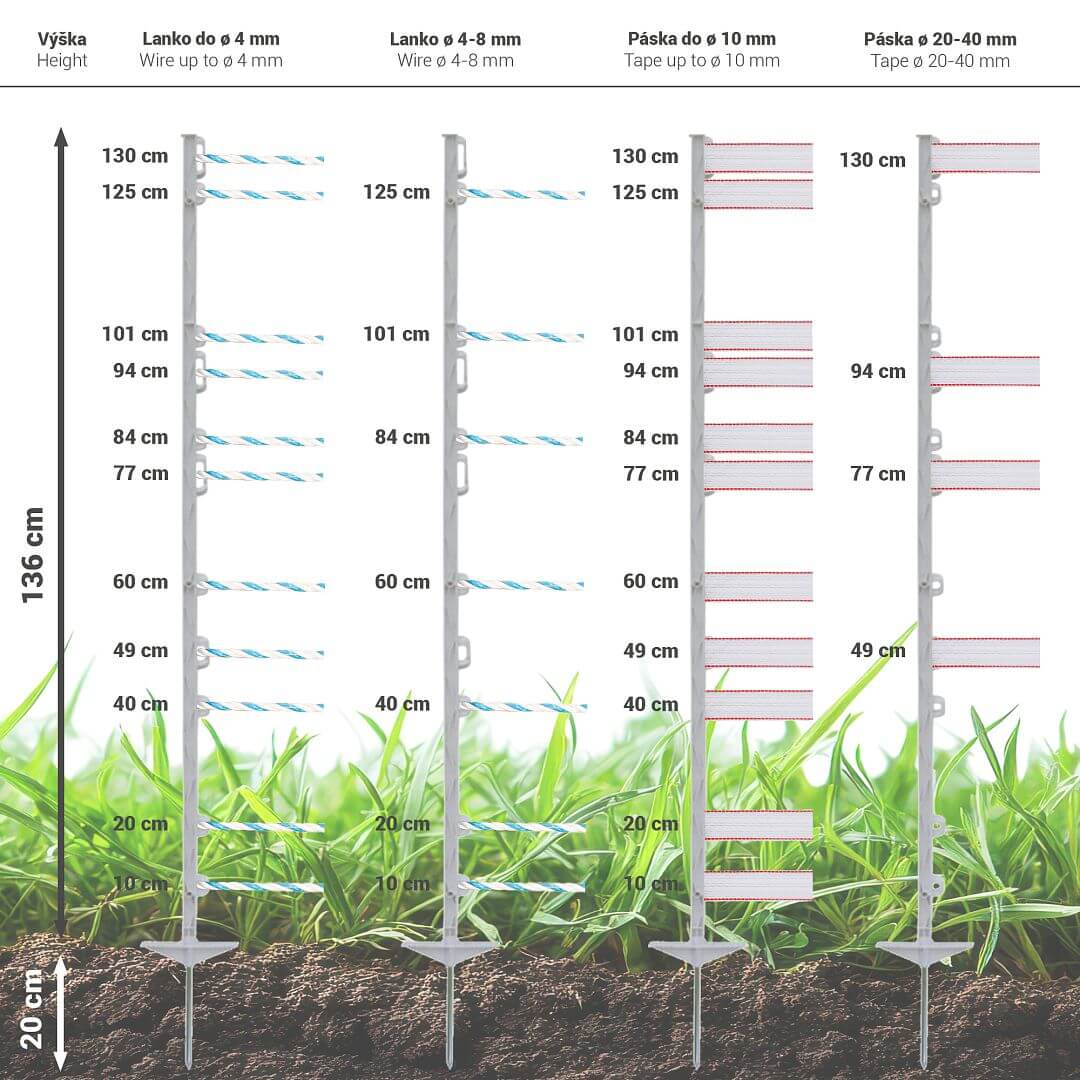

White plastic posts 20 pcs with a total length of 156 cm, 136 cm above the ground. White conductive tape with a width of 20 mm in a 200 m roll, 5 × 0,16 stainless steel wire. The set also includes a grounding rod.

Package contents:

This set does not include a battery. The 12 V battery for the energizer must be purchased. Accessories in complete sets are covered by a 24-month warranty only. All fencee energizers come with a 36 month extended warranty.

The following accessories can be purchased with the solar fence kit:

Toxic material

Battery for electric fence 12 V 44 Ah

High quality and reliable car battery, suitable for use with electric fence. Ergonomic…

Product detail

Do you need advice? Ask anything about the product Expert solar fence kit - Complete security box + energizer power DUO 1 J, 40 W panel, polytape 20 mm

Power source	230 V ~ / 12 V
Energizer consumption 230 V	3 W
Energizer consumption 12 V	40 - 100 mA
Output energy	1 J
Input energy	1,4 J
Output voltage	9000 V
Output voltage 500 Ω	5000 V
ON/OFF
LED ON/OFF
LED impulse
LED low battery voltage
LED lower power 50%
LED error check
LED impulse bargraph
TEOR. max. CEE	35 km
Low vegetation	8 km
Medium vegetation	2 km
High vegetation	1,5 km
Earthing 1 m	1 ×
El. fence nets	3 ×
Diameter	210 mm
Depth	66 mm
Weigth	1512 g
