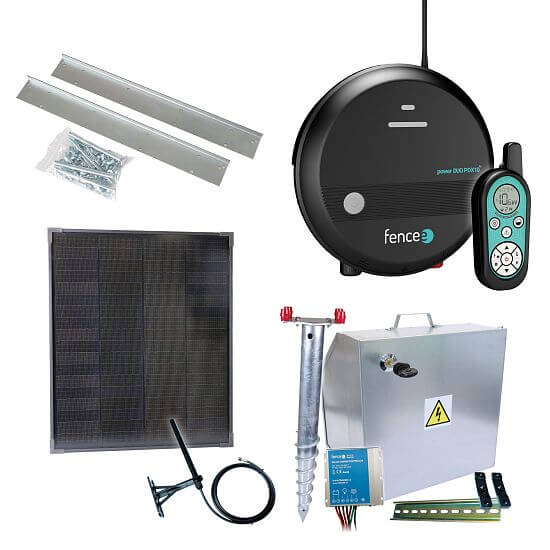

Product´s description Premium solar fence kit - Complete security box + Smart energizer 1 J, solar panel 40 W
A practical solution for Smart electric fence in places without electricity during the season. Solar electric fence kit suitable for electric fences up to 9 km.
Security box for energizer and battery, Mounting post and Regulator 10 A included
Security box for electric fence energizer and battery. Electrifiable metal box with robust mounting post. The box can be connected to the fence energizer, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee energizer. Regulator 10 A for solar panel 40 W.
Security box features:
- Robust box made of galvanized steel
- Stable mounting post to the box
- Internal ground connection for the fence energizer
- All cables inside the box
- High voltage box - excellent protection against theft
- Insulated keys for safe unlocking of the box
- External dimensions of the box: 37 × 37 × 34.5 cm (W×D×H)
Smart RF energizer with 1 J power output
Smart RF energizer fencee power DUO RF PDX10 with 1 J power suitable for electric fences up to 9 km. The LEDs and Bargraph indicate the operation in colour. The modern Smart Control microprocessor ensures maximum efficient performance with low power consumption. Overview of fence voltage and power in the remote controller. Warning alerts. Large LCD display with control buttons.
FENCEE POWER DUO RF PDX10 energizer
Controlling the solar electric fence with remote controller
Remote control for controlling the smart RF energizers of the power DUO RF PDX series. Use the remote controller to conveniently and safely switch on/off the energizer. Range with basic antenna 10 km. Illuminated display with all important information. Battery status message when battery voltage drops below 12 V.
External RF antenna to increase communication range up to 30 km
The kit also includes an external RF antenna to ensure the best possible signal quality and increased range for controlling the smart RF energizer with the remote controller.
External RF antenna with 2m cable
Solar panel 40 W for electric fence
The location of the solar panel should be chosen to be towards the south and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel. The fence energizer cannot be powered by the solar panel alone, the battery and regulator must always be connected at the same time.
Mounting bracket for attaching the 40 W solar panel to security box
Mounting bracket for mounting the 40 W solar panel on security box. Consists of 2 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.
Instructions for assembling the mounting bracket
Package contents:
- Smart RF energizer fencee power DUO RF PDX10 with remote controller
- Securtiy box with DIN rail and 10 A regulator
- External RF antenna with 2m cable
- Solar panel 40 W
- Mounting bracket for attaching the 40 W solar panel to security box
This kit does not include a battery. A 12 V battery to power the energizer must be purchased. Accessories in complete kits are covered by a 24 month warranty only. All fencee energizers come with a 36 month extended warranty.
Get perfect overview with fencee Cloud app
If you want to control the fence with your mobile phone for unlimited range, get the central WiFi Gateway device as well. You will get a lot of practical benefits and have 100% overview of your electric fence from anywhere, anytime.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 3 W |
| Energizer consumption 12 V | 40 - 100 mA |
| Output energy | 1 J |
| Input energy | 1,4 J |
| Output voltage | 9000 V |
| Output voltage 500 Ω | 5000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| LED impulse bargraph | |
| fencee Cloud connection | |
| External antenna SMA connector | |
| Remote control | |
| Data encoding | |
| Controller batteries | 1 × CR2 |
| Transmission frequency | 869,525 MHz |
| Transmitting power | +22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 35 km |
| Range with external antenna | 30 km |
| Low vegetation | 8 km |
| Medium vegetation | 2 km |
| High vegetation | 1,5 km |
| Earthing 1 m | 1 × |
| El. fence nets | 3 × |
| Diameter | 210 mm |
| Depth | 66 mm |
| Weigth | 1580 g |
