Product´s description Electric fence kit for sheep, goat, boars - DUO energizer - electric net 50 m

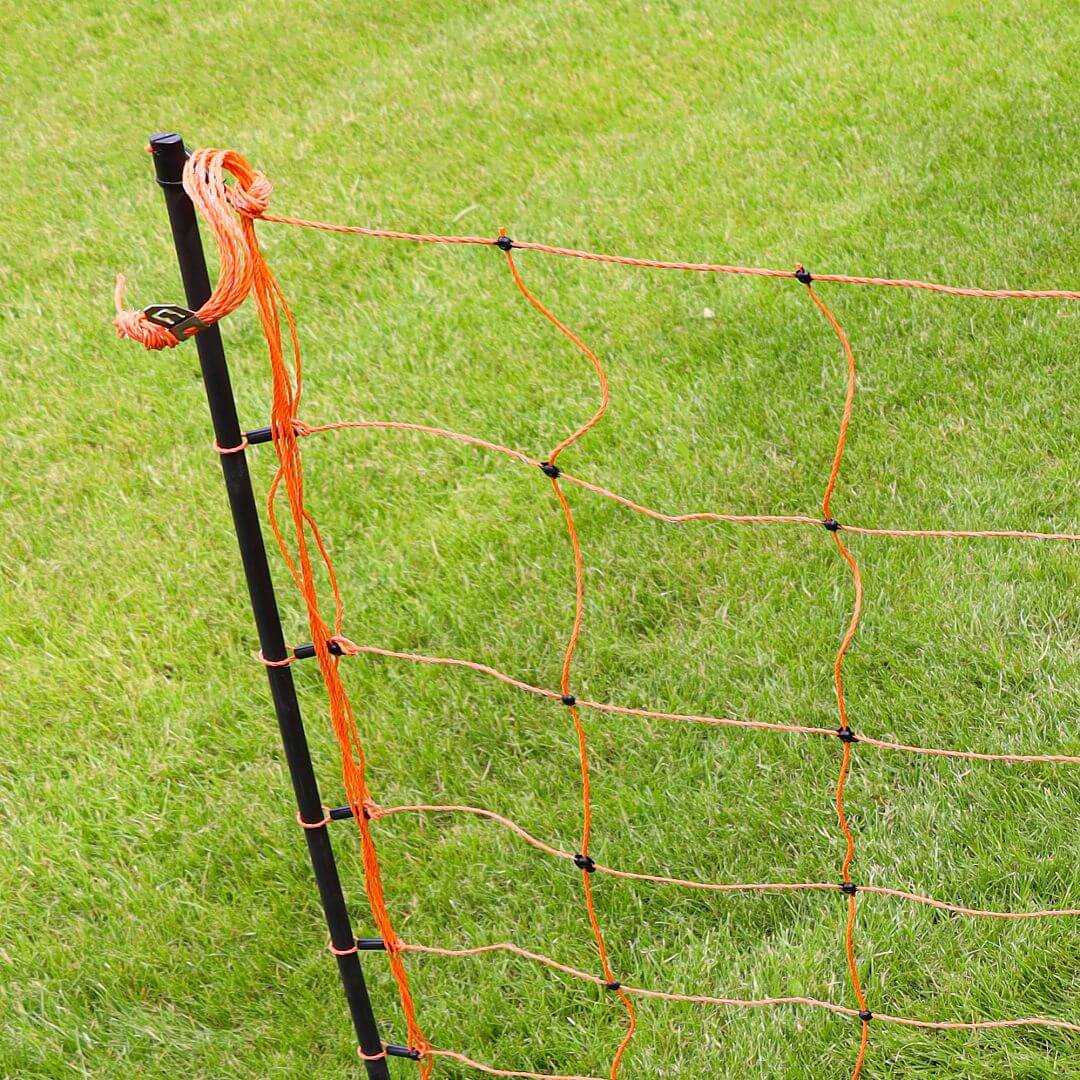

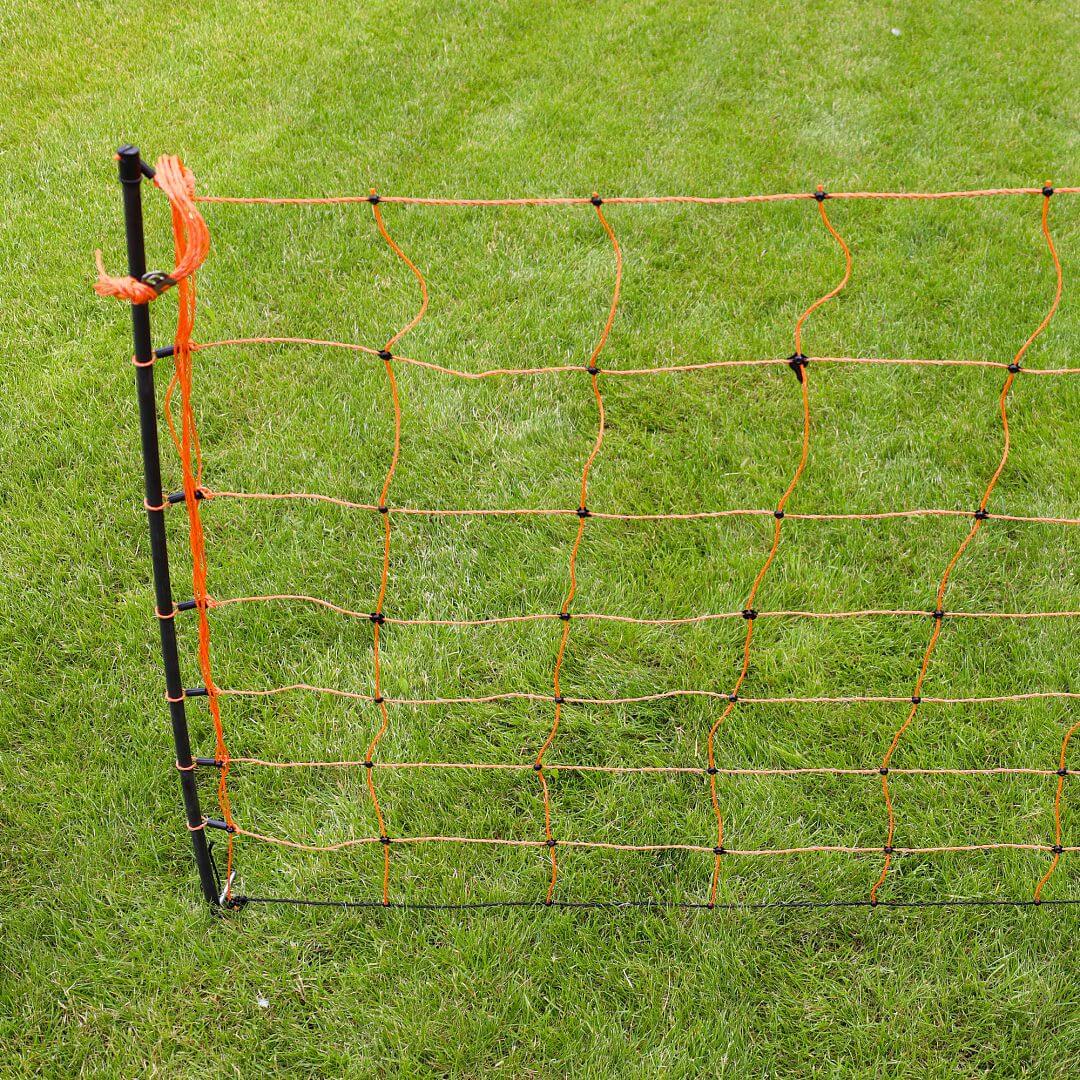

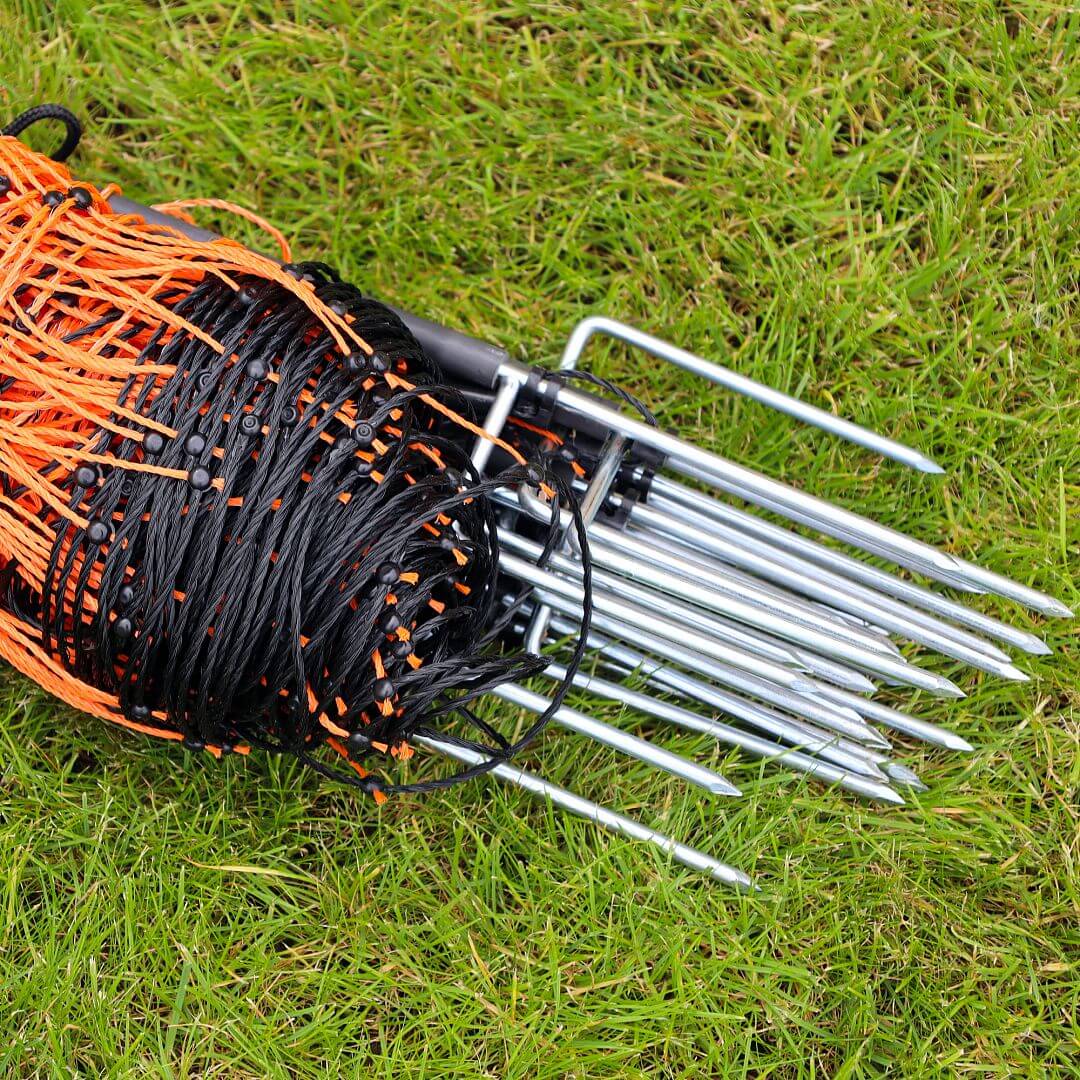

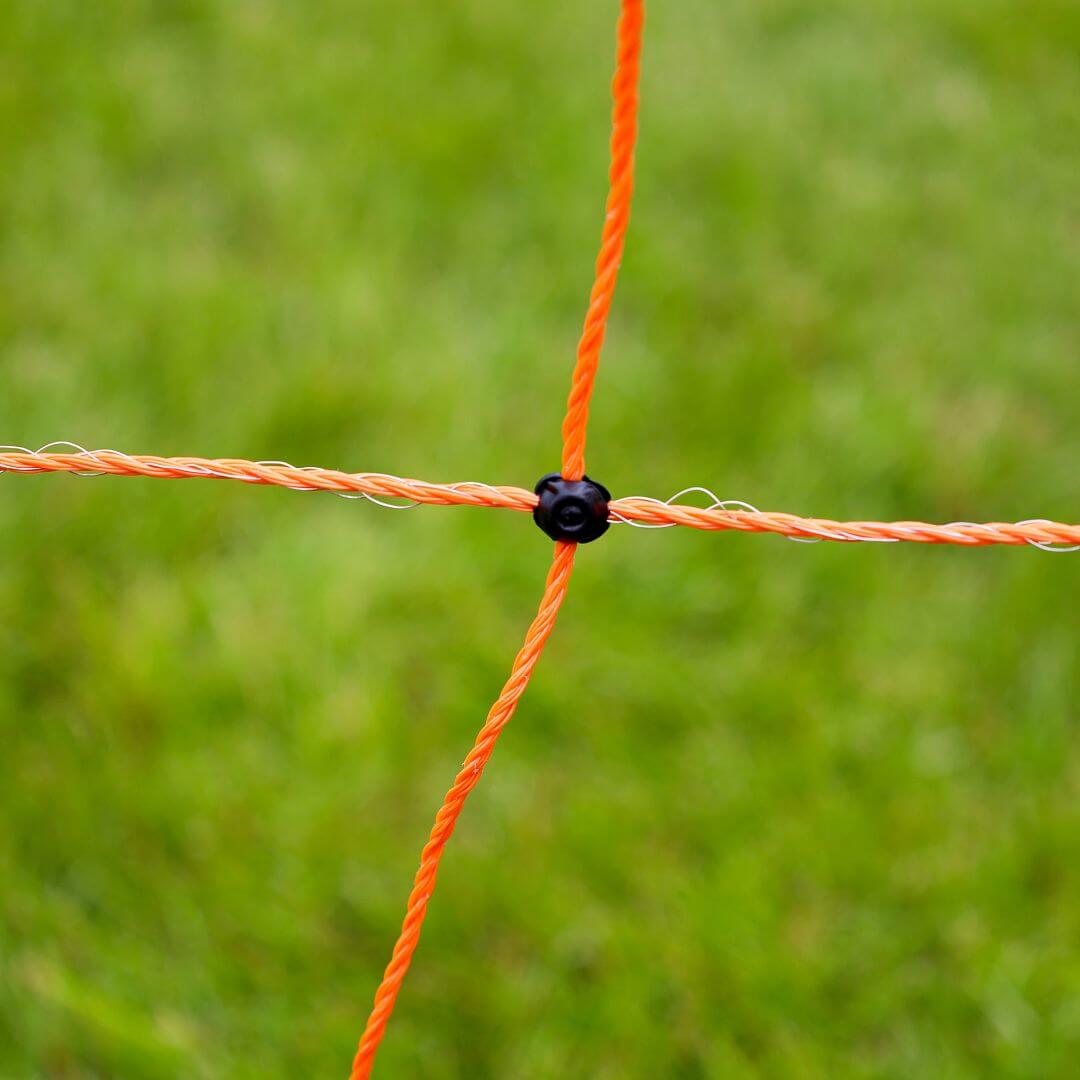

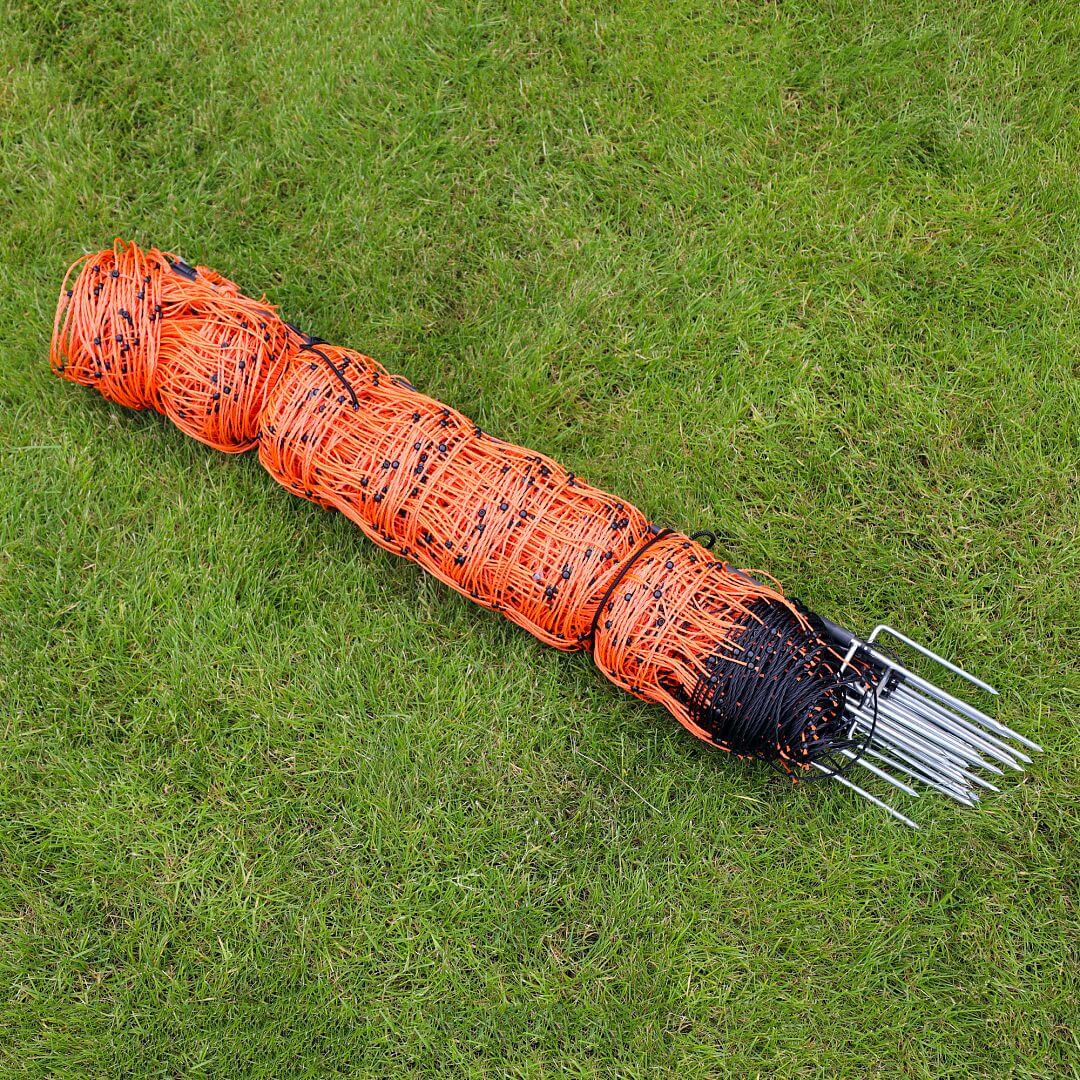

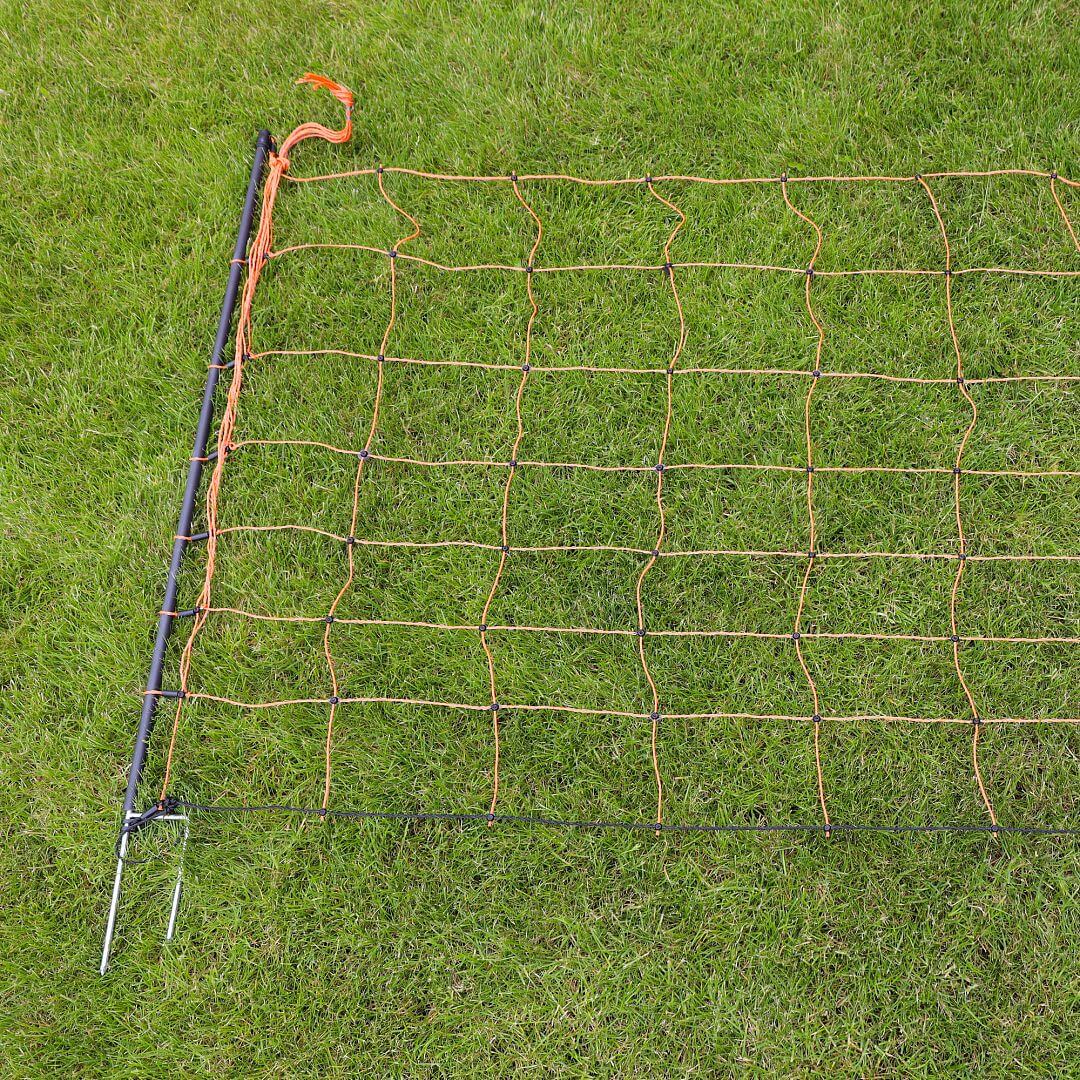

Electric fence kit with electric net designed especially for sheep, goats, domestic pigs or larger dogs. The electric net also serves as a protection for land or crops against forest animals or wild boars. Use the net to quickly and easily demarcate a safe area for your animals or to prevent them from entering selected undesirable areas. The electric fence net for sheep and goats is a very simple and mobile solution. It can be installed up to 50 meters in circumference and 90 cm high.
Fencing sheep with dense wool, which insulates very well, requires an energizer with adequate power. The fencee power DUO PD40 230 V/12 V energizer in the kit, with an output power of 4 J, is universally applicable for medium to long fences with installation lengths of up to 30 km. The DUO energozer can be powered via an adapter from a 230 V or from a standard 12 V battery. This can also be used as a backup power supply in case of a possible power failure.
Energizer with modern waterproof construction. With a bargraph and LED lights on the front of the energizer to show the operation of the device. Measure the voltage on the fence and indicate a possible fault.
The kit also includes a ground rod and all the necessary interconnecting cables to get the mobile sheep enclosure up and running in no time.
Package contents:
- fencee power DUO PD40 energizer
- 1× net, height 90 cm, length 50 m, 14 rods, orange
- 1× ground rod 75 cm (galvanized)
Included in the energizer package:
- 1× power adapter fencee DUO 14 V 1A, lead length 1.5 m
- 1× earthing cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× battery cable fencee DUO 1,7 m
- 1× warning plate
- 1× operating instructions
We recommend purchasing a DIN rail 200 mm for easy mounting of the energizer on the wall.
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 80 - 320 mA |
Output energy | 4 J |
Output voltage | 10000 V |
Output voltage 500 Ω | 5500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 120 km |
Low vegetation | 30 km |
Medium vegetation | 8 km |
High vegetation | 3 km |
Earthing 1 m | 1 × |
El. fence nets | 6 × |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1540 g |
Manuals and files for downloading
Manual fencee power DUO PDFAQ
- Troubleshooting
- Functional electric fence principles - troubleshooting tips
- Recommended wire heights
