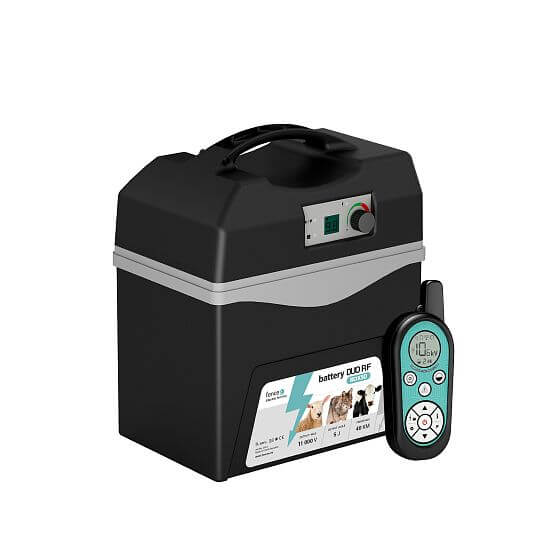

Product´s description Smart portable battery energizer fencee battery DUO RF BDX50 with controller
If you need maximum power and performance to protect large areas and animals, the Smart Battery energizer with 5 J is the best solution. This powerful RF electric fence energizer is designed for the toughest conditions where you need to prevent animals such as bulls, goats, sheep or deer from escaping while protecting your land from wild boars.
Smart powerful battery RF energizer for electric fence 5 J
Portable smart battery energizer for electric fencing with display to indicate fence voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs for device function and battery status. Device with combined power supply, so it can also be powered by an adapter from the 230 V mains.

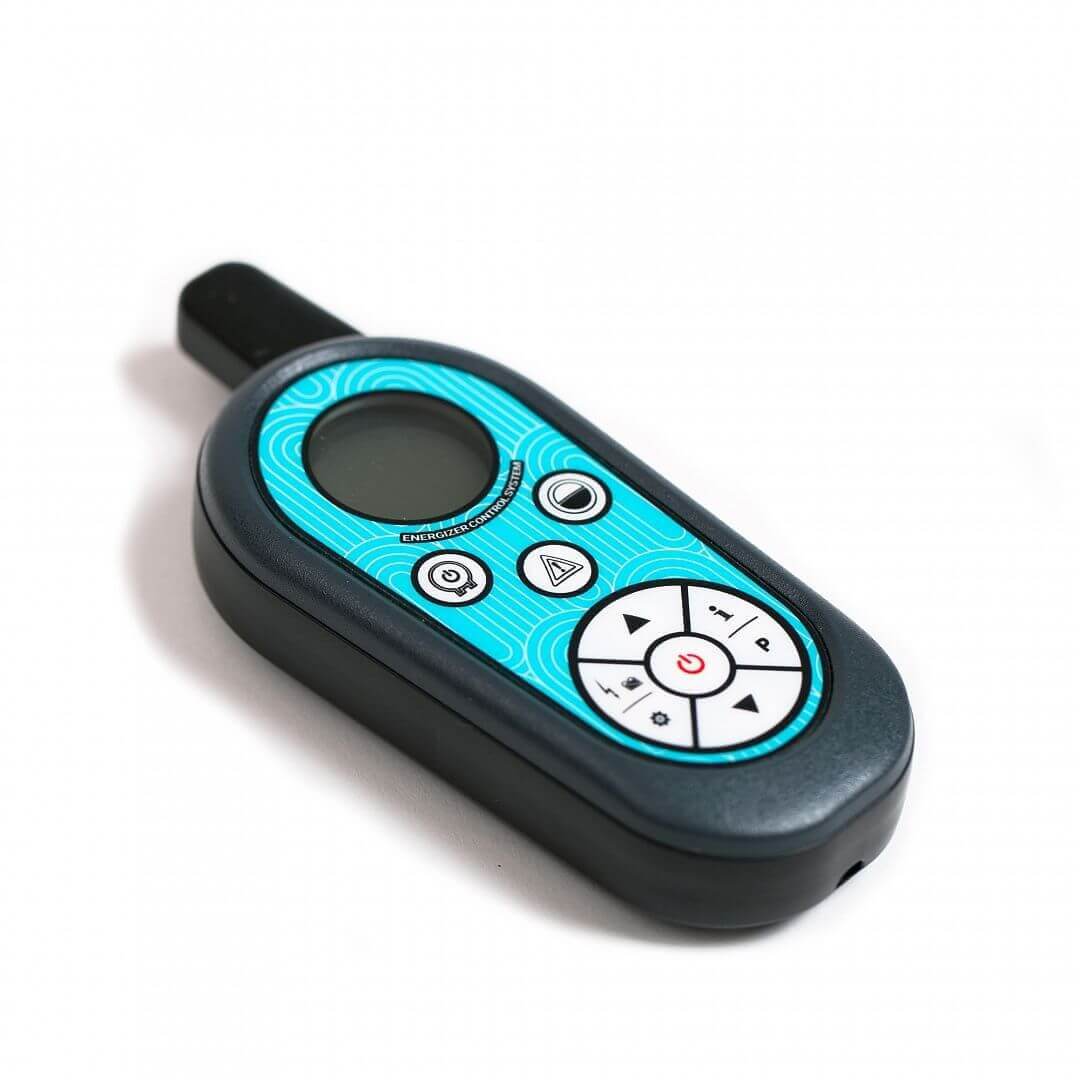

Practical RF remote controller with a range of 10 km
Small, lightweight and shockproof remote RF controller for operational tasks, ON/OFF and receiving an audible alarm at a distance of 10 km. Clear backlit display of the controller with the most important information about the fence. Displaying signal quality, power and current battery capacity of the power supply. The controller with CR2 3V battery lasts for a whole season.
Space for a 12 V battery 44 Ah
The battery-powered fence has a large compartment for a 12-volt battery with a capacity of 44 Ah. The battery is built into the housing and is protected from UV radiation and weather conditions. The person carrying the battery fence is protected from contact with the battery. The device has a battery status indicator and deep discharge protection for the longest possible battery life.
Energy saving mode and efficient use of the battery
A microprocessor controls the operation of the energizer, adjusting the optimum output and ensuring maximum efficient use of the battery. The power saving mode allows a long press of the ON/OFF button to switch the energizer to a slower mode, where the interval between pulses is approximately twice as long. Switching to power saving mode significantly saves battery power.
Mobile waterproof design with practical handle
The battery-powered electric fence is designed for harsh conditions and long-term outdoor use. Coverage IP44. The input connector for connecting the mains adapter is waterproof. The energizer has integrated lightning protection. Handle for easy transport.
Possibility of connecting a 30 W solar panel
A 30 W solar panel can be connected to the device to ensure continuous operation even in remote locations.
Package contents:
- 5 J battery RF energizer
- blue RF remote control
- adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- 150 cm ground cable (eyelet to eyelet)
- ground rod for fence
- fencee warning plate
- operating instructions
Get maximum visibility with the fencee Cloud app
If you want to control the fence with your mobile phone for unlimited range, get the central WiFi Gateway device as well. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere and at any time.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 4,5 W |
| Energizer consumption 12 V | 28 mA - 380 mA |
| Output energy | 5 J |
| Input energy | 6,5 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 6000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| LCD display | |
| fencee Cloud connection | |
| Power Save mode | |
| Remote control | |
| Data encoding | |
| Controller batteries | 1 × CR2 |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 140 km |
| Low vegetation | 40 km |
| Medium vegetation | 16 km |
| High vegetation | 6 km |
| Earthing 1 m | 4× |
| El. fence nets | 20× |
| Weight | 2982 kg |
| Dimension | 38 × 31 × 21 cm |
