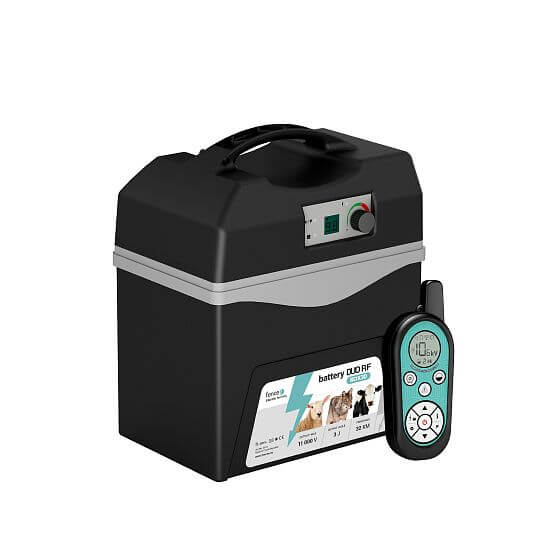

Product´s description Smart portable battery energizer fencee battery DUO RF BDX30 with controller
The smart battery-powered 3 J electric fence is a robust solution for protecting large farms, pastures, fields and crops. This powerful electric fencing system is designed to effectively keep large animals such as cattle, horses, goats or deer on pasture while protecting areas from wild pigs and forest animals.
Smart battery-powered electric fence energizer with 3 J
Smart energizer with display to indicate source voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs and battery level indication. The device has a combined power supply, so it can also be powered by mains adapter.
Practical RF remote controller with a range of 10 km
Small, lightweight and shockproof remote RF controller for operational tasks, ON/OFF and receiving an audible alarm at a distance of 10 km. Clear backlit display of the controller with the most important information about the enclosure. Displaying signal quality, power and current battery capacity. The controller with CR2 3V battery lasts for a whole season.
Plenty of space for a 12 V battery 44 Ah
The battery-powered fence has a large compartment for a 44 Ah 12 V battery. The battery is built inside the device and is protected from UV radiation. The person carrying the battery fence is protected from contact with the battery.
Possibility of connecting a solar panel with a power of 30 W
A 30 W solar panel can be connected to the energizer to ensure continuous operation in areas without electricity. With the option of solar charging of the electric fence, you get an energy self-sufficient system that can be operated even in remote areas.
Power Save - Power saving mode of the electric fence
The energy saving mode allows you to save energy. By long pressing the ON/OFF button, the power supply can be switched to a mode where the interval between pulses is approximately twice as long. By switching to power saving mode, the battery can be saved significantly.
Robust design with handle for easy transport
Battery energizer for harsh conditions and long-term outdoor use. Coverage IP44. The device is resistant to rain, weather conditions and UV radiation. Integrated lightning protection.
Package contents:
- battery RF energizer 3 J
- blue RF remote controller
- power adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- 150 cm ground cable (eyelet to eyelet)
- ground rod for fence
- fencee warning plate
- operating instructions
Get maximum visibility with the fencee Cloud app
If you want to control the fence with your mobile phone for an unlimited range, get the central WiFi Gateway device as well. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere and at any time.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 3 W |
| Energizer consumption 12 V | 25 mA - 250 mA |
| Output energy | 3 J |
| Input energy | 4 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 5500 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| LCD display | |
| fencee Cloud connection | |
| LED indication | |
| Power Save mode | |
| Remote control | |
| Data encoding | |
| Controller batteries | 1 × CR2 |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 100 km |
| Low vegetation | 30 km |
| Medium vegetation | 13 km |
| High vegetation | 5 km |
| Earthing 1 m | 3× |
| El. fence nets | 13× |
| Weight | 2982 kg |
| Dimension | 38 × 31 × 21 cm |
