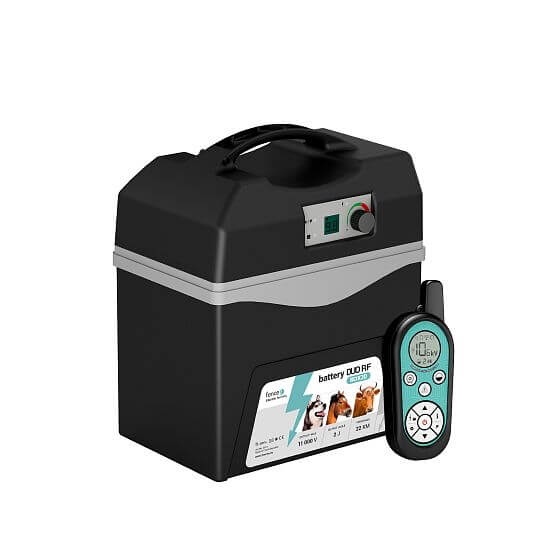

Product´s description Smart portable battery energizer fencee battery DUO RF BDX20 with controller
The smart battery-powered 2 J electric fence is designed for farmers and ranchers who need to protect smaller and medium-sized pastures and animals such as horses, llamas, cattle and goats. This mobile electric fence provides sufficient power to protect animals while providing effective protection against smaller wildlife.
Flexible battery RF energizer for electric fence 2 J
Smart battery energizer for electric fencing with display and optical display control. The output power can be infinitely adjusted by a rotary control knob in 19 levels. Signalling LEDs for device function and battery status. Energizer with combined power supply, so it can also be powered by a 230 V mains adapter.
Practical RF remote controller with a range of 10 km
Small, lightweight and shockproof remote RF controller for operational tasks, ON/OFF and receiving audible alarms at a distance of 10 km. Clear backlit display of the controller with the most important information about the enclosure. Displaying signal quality, power and current battery capacity of the energizer.
12 V battery storage box
The portable energizer has space for storing a 12 V battery with a capacity of 44 Ah. The battery is built into the enclosure and is protected from UV radiation and weather conditions. When the battery is completely discharged, the energizer automatically switches off to prevent damage to the battery.
Ready to mount a solar panel 30 W
With the option to mount a 30 W solar panel, this electric fence is suitable for remote areas. An energy-saving solution for long-term operation of the fence without the need to connect to the mains.
Energy saving mode of the battery electric fence
Power Save mode allows a long press of the ON/OFF button to switch the energizer to a slower mode where the interval between pulses is approximately twice as long. Switching to power save mode saves the battery significantly.
Waterproof design with a practical handle
The battery-powered electric fence is designed for harsh conditions and long-term outdoor use. Coverage IP44. The input connector for connecting the mains adapter is waterproof. Integrated lightning protection.
Package contents:
- 2 J battery RF energizer
- blue RF remote control
- power adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- 150 cm ground cable (eyelet to eyelet)
- ground rod for fence
- fencee warning plate
- operating instructions
Get maximum visibility with the fencee Cloud app
If you want to control the fence with your mobile phone for unlimited range, get the central WiFi Gateway device as well. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere and at any time.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 1,9 W |
| Energizer consumption 12 V | 20 mA - 160 mA |
| Output energy | 2 J |
| Input energy | 2,6 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 5000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| LCD display | |
| fencee Cloud connection | |
| LED indication | |
| Power Save mode | |
| Remote control | |
| Data encoding | |
| Controller batteries | 1 × CR2 |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 60 km |
| Low vegetation | 22 km |
| Medium vegetation | 10 km |
| High vegetation | 3 km |
| Earthing 1 m | 2× |
| El. fence nets | 9× |
| Weight | 2982 kg |
| Dimension | 38 × 31 × 21 cm |
