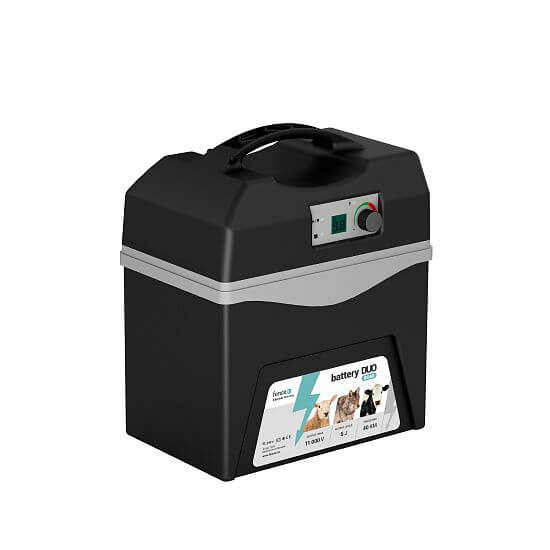

Product´s description Portable battery electric fence energizer fencee battery DUO BD50
If you need maximum power and performance to protect large areas and animals, the 5 J battery-powered fence energizer is the best solution. This powerful electric fence is designed for the toughest conditions where you need to prevent animals such as bulls, goats, sheep or deer from escaping, while protecting your land from wild boar.
Bluetooth compatibility for controlling the fence with your phone
Connect the energizer via the Bluetooth fencee app and control electric fence with your mobile phone.
Powerful 5 J battery energizer for the electric fence
Portable battery energizer for electric fencing with display to indicate fence voltage, battery voltage and power level. Output power can be infinitely adjusted by a rotary control knob in 19 levels. Signalling LEDs for device function and battery status. The device has a combined power supply, so it can also be powered by a 230 V mains adapter.
Space for a 12 V battery with a capacity of 44 Ah
The battery-operated fence energizer has a large compartment for a 12 V battery with a capacity of 44 Ah. The battery is integrated in the housing and protected from UV radiation and weather conditions. The person carrying the battery fence is protected from contact with the battery. The device has a battery status indicator and deep discharge protection for the longest possible battery life.
Energy saving mode and efficient use of the battery
A microprocessor controls the operation of the energizer, adjusting the optimum output and ensuring maximum efficient use of the battery. The power saving mode allows a long press of the ON/OFF button to switch the energizer to a slower mode, where the interval between pulses is approximately twice as long. Saves battery power.
Mobile waterproof design with practical handle
The battery-powered electric fence energizer is designed for harsh conditions and long-term outdoor use. Coverage IP44. The input connector for connecting the mains adapter is waterproof. Integrated lightning protection.
Possibility of connecting a 30 W solar panel
A 30 W solar panel can be connected to the device to ensure continuous operation even in remote locations.
Package contents:
- fencee battery energizer 5 J
- adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- ground cable 150 cm (eyelet to eyelet)
- grounding rod for the fence
- fencee warning plate
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 4,5 W |
Energizer consumption 12 V | 28 mA - 380 mA |
Output energy | 5 J |
Input energy | 6,5 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 6000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LCD display | |
Power Save mode | |
TEOR. max. CEE | 140 km |
Low vegetation | 40 km |
Medium vegetation | 16 km |
High vegetation | 6 km |
Earthing 1 m | 4× |
El. fence nets | 20× |
Weight | 2920 kg |
Dimension | 38 × 31 × 21 cm |
