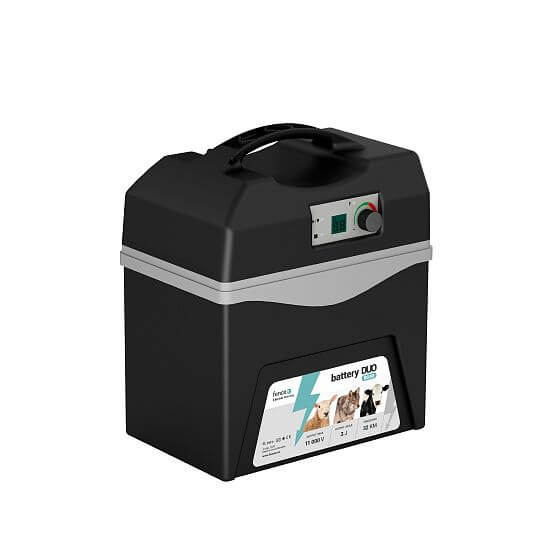

Product´s description Portable battery electric fence energizer fencee battery DUO BD30
The battery-powered 3 J electric fence is a robust solution for protecting large farms, pastures, fields and crops. This powerful electric fencing system is designed to effectively keep large animals such as cattle, horses, goats or deer on pasture while protecting areas from wild pigs and forest animals.

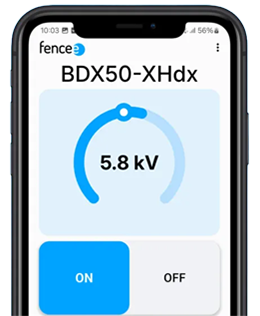

Bluetooth compatibility for controlling the fence with your phone
Connect the energizer via the Bluetooth fencee app and control electric fence with your mobile phone.
The battery-powered electric fence with 3 J
Battery powered fence with display to indicate energizer voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs and battery level indication. The device has a combined power supply, so it can also be powered by mains adapter.
Plenty of space to accommodate a 12 V battery
The battery-operated fence has a large compartment for a 12 V battery with a capacity of 44 Ah. The battery is built inside the device and is protected from UV radiation. Person carrying energizer is protected from contact with the battery.

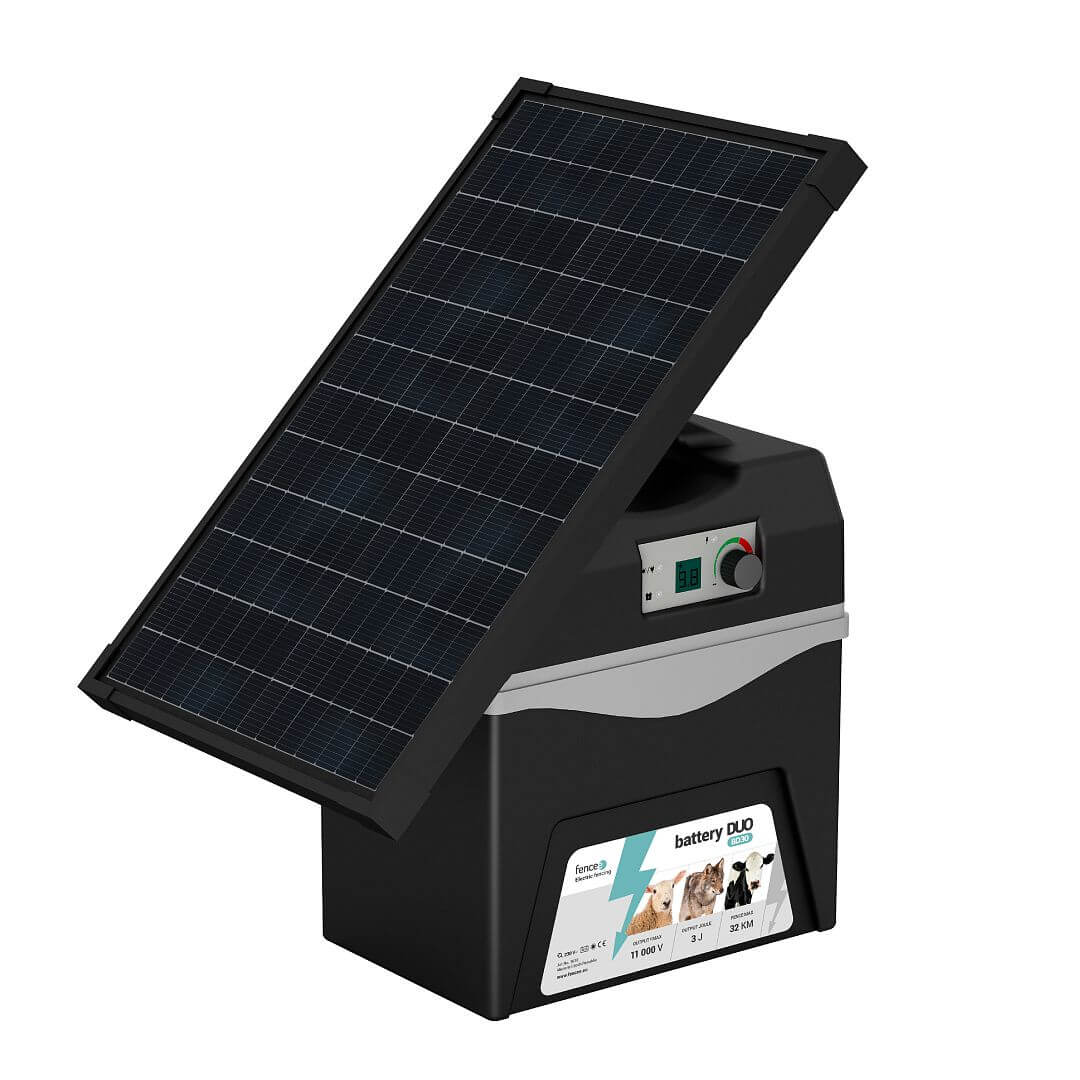

Possibility of connecting a solar panel with a power of 30 W
A 30 W solar panel can be connected to the energizer to ensure continuous operation in areas without electricity. With option of solar electric fence charging, you get an energy self-sufficient system that can be operated everywhere.
Power Save - Power saving mode of the electric fence
The energy saving mode allows you to save energy. By long pressing the ON/OFF button, the energizer can be switched to a mode where the interval between pulses is approximately twice as long. By switching to power saving mode, the battery can be saved significantly.
Robust design with handle for easy transport
Battery fencer for harsh conditions and long-term outdoor use. Coverage IP44. The device is resistant to rain, weather conditions and UV radiation. Energizer with integrated lightning protection.
Package contents:
- battery energizer fencee 3 J
- adapter fencee DUO 14 V 1.5 m
- connection cable 100 cm (eyelet-heart)
- ground cable 150 cm (eyelet to eye)
- grounding rod for the fence
- fencee warning plate
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 3 W |
Energizer consumption 12 V | 25 mA - 250 mA |
Output energy | 3 J |
Input energy | 4 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 5500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LCD display | |
Power Save mode | |
TEOR. max. CEE | 100 km |
Low vegetation | 30 km |
Medium vegetation | 13 km |
High vegetation | 5 km |
Earthing 1 m | 3× |
El. fence nets | 13× |
Weight | 2920 kg |
Dimension | 38 × 31 × 21 cm |
