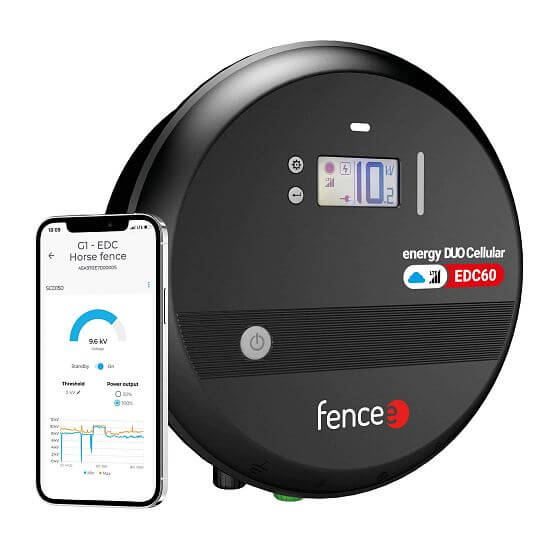

Product´s description Smart LTE electric fence energizer fencee energy DUO Cellular EDC60
Smart LTE energizer with 6 J for electric fences up to 75 km long. Easy connection and control from your Android or iOS smartphone.
LTE energizers use e-SIM, NB-loT technology and GSM network
A smart LTE electric fence that allows direct connection to the free fencee Cloud app and the internet via the latest e-SIM technology, allowing the device to be controlled from anywhere. The NB-IoT technology of the device is continuously online in the GSM mobile network.
PERFECT OVERVIEW thanks to warning alert notifications
Receive alert notifications to your mobile phone in real time, e.g. when the voltage drops below a set minimum value or when the battery is low. Get information about the current status of the electric fence 24/7, monitoring measurements and parameters. Possibility to share individual devices with other app users.
GPS function, MOTION SENSOR and battery backup
The GPS tracking function of the device is still active after the source is disconnected from the network thanks to a small backup battery. The motion sensor records every movement and you can track the device on a map using the app, if the device is stolen you will be notified immediately in the app.
Powerful flexible energizer with DUO POWER
Powerful 12/230 V combined power supply with 6 J suitable for cattle, sheep, goats, horses. Also against forest animals and wild boars. Green and yellow clamp with reduced output for use with smaller animals or youngs.
Package contents:
- LTE energizer including backup battery
- 14 V / 2 A power adapter
- 150 cm ground cable (eyelet to eyelet)
- 100 cm connection cable (eyelet-heart)
- battery cable for connecting energizer to the battery
- fencee warning plate
- operating instructions
The smart cellular LTE energizers for the electric fence have won the Golden Klas 2023 award, which is given to modern products at the prestigious Earth Living exhibition. In addition, it was also awarded the GRAND PRIX 2024 at the TECHAGRO exhibition.
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 5 - 8 W |
| Energizer consumption 12 V | 417 - 573 mA |
| Output energy | 6 J |
| Input energy | 7,5 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 7000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |
| TEOR. max. CEE | 210 km |
| Low vegetation | 75 km |
| Medium vegetation | 14 km |
| High vegetation | 5 km |
| BLUETOOTH | 4.1 |
| LTE | Cat M1 + NB1 |
| Earthing 1 m | 3x |
| El. fence nets | 20x |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3301 g |
Manuals and files for downloading
Manual - fencee energy DUO Cellular EDC (CZ,EN,PL,HU)FAQ
- Recommended wire heights
- How to use a grounding quality terminal and terminal with reduced output?
- Functional electric fence principles - troubleshooting tips
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
