Product´s description Premium solar fence kit - Complete safety box + 8J LTE smart energizer, 200 W panel
Solar-powered fence set suitable for electric fences up to 80 km.
Safety box for energizer and battery, Mounting mandrel and Regulator included
Safety box for electric fence energizer and battery. Electrifiable metal battery box with robust mounting mandrel. The box can be connected to the fence power supply, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee generator. 10 A regulator for solar panels with 200 W output.
Safety box features:
- Robust box made of galvanized steel.
- Stable mounting mandrel to the box
- Internal ground connection for the fence energizers
- All cables inside the box
- High voltage box - excellent protection against theft
- Insulated keys to unlock the box safely
- External dimensions of the box: 37 × 37 × 34.5 cm (W×D×H)
Smart LTE 8J fence energizer with combined 12/230V
Powerful smart fencee energizer with 8 J power suitable for electric fences up to 80 km. LEDs and Bargraph colour-coded to indicate the operation of the fence. Overview of the fence voltage and power on your mobile phone. Warning alerts. LTE energizer FENCEE ENERGY DUO Celullar EDC80
LTE electric fence control by mobile phone
200 W solar panel for electric fence
The location of the solar panel should be chosen to be south-facing and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel. The fence power supply cannot be powered by the solar panel alone, the battery and controller must always be connected at the same time.
Mounting bracket for attaching the 200 W solar panel to the safety box
Mounting bracket for mounting the 200 W solar panel on the safety box. Consists of 6 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.

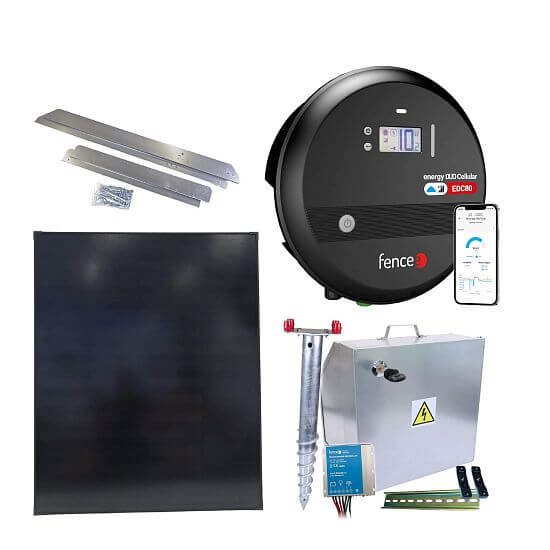

Package contents:
- Smart LTE fencee energy DUO Cellular EDC80
- Safety box with DIN rail and controller
- Solar panel with 200 W output
- Mounting bracket for attaching the 200 W solar panel to the safety box
This kit does not include a battery. A 12 V battery to power the energizer must be purchased. Accessories in complete kits are covered by a 24 month warranty only. All fencee energizers come with a 36 month extended warranty. Mounting the LTE energizers in a metal box may degrade LTE network connectivity.
Get maximum visibility with the fencee Cloud app
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 6 - 11 W |
| Energizer consumption 12 V | 415 - 750 mA |
| Output energy | 8 J |
| Input energy | 11 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 7500 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |
| TEOR. max. CEE | 230 km |
| Low vegetation | 80 km |
| Medium vegetation | 17 km |
| High vegetation | 8 km |
| BLUETOOTH | 4.1 |
| LTE | Cat M1 + NB1 |
| Earthing 1 m | 4x |
| El. fence nets | 22x |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3301 g |
Manuals and files for downloading
Manual - fencee energy DUO Cellular EDC (CZ,EN,PL,HU) Manual - Mounting brackets for solar panels Manual - Regulators for solar panels Manual - Boxes for energizers and solar panels Manual - Solar panels 40, 100, 200 WFAQ
- How to use a grounding quality terminal and terminal with reduced output?
- Functional electric fence principles - troubleshooting tips
- How does an electric fence work?
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
