Product´s description Portable electric fence RF energizer fencee solar DUO RF SDX08

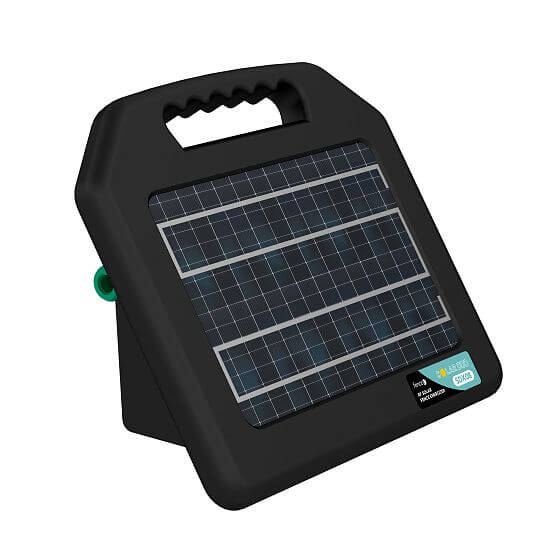

Smart RF electri fence in portable design with intergrated solar panel for automatic charging of 12V battery. Lightweight portable energizer for electric fences, mobile paddocks, paddocks, tournaments and races.
RF SD08 smart solar energizer with 0.8 J
Comprehensive 3-in-1 solar fencing system - energizer, solar panel and battery. Suitable for electric fences with a maximuminstallation length of 15 km in conditions without dense vegetation. Suitable for smaller electric fences for cattle, goats, horses, ponies, rabbits, dogs, cats and other small animals. Also for use against pests, marten, otter, heron. Can becharged and operated with a 230 V mains adapter. Solar power allows use in locations without access to mains electricity.

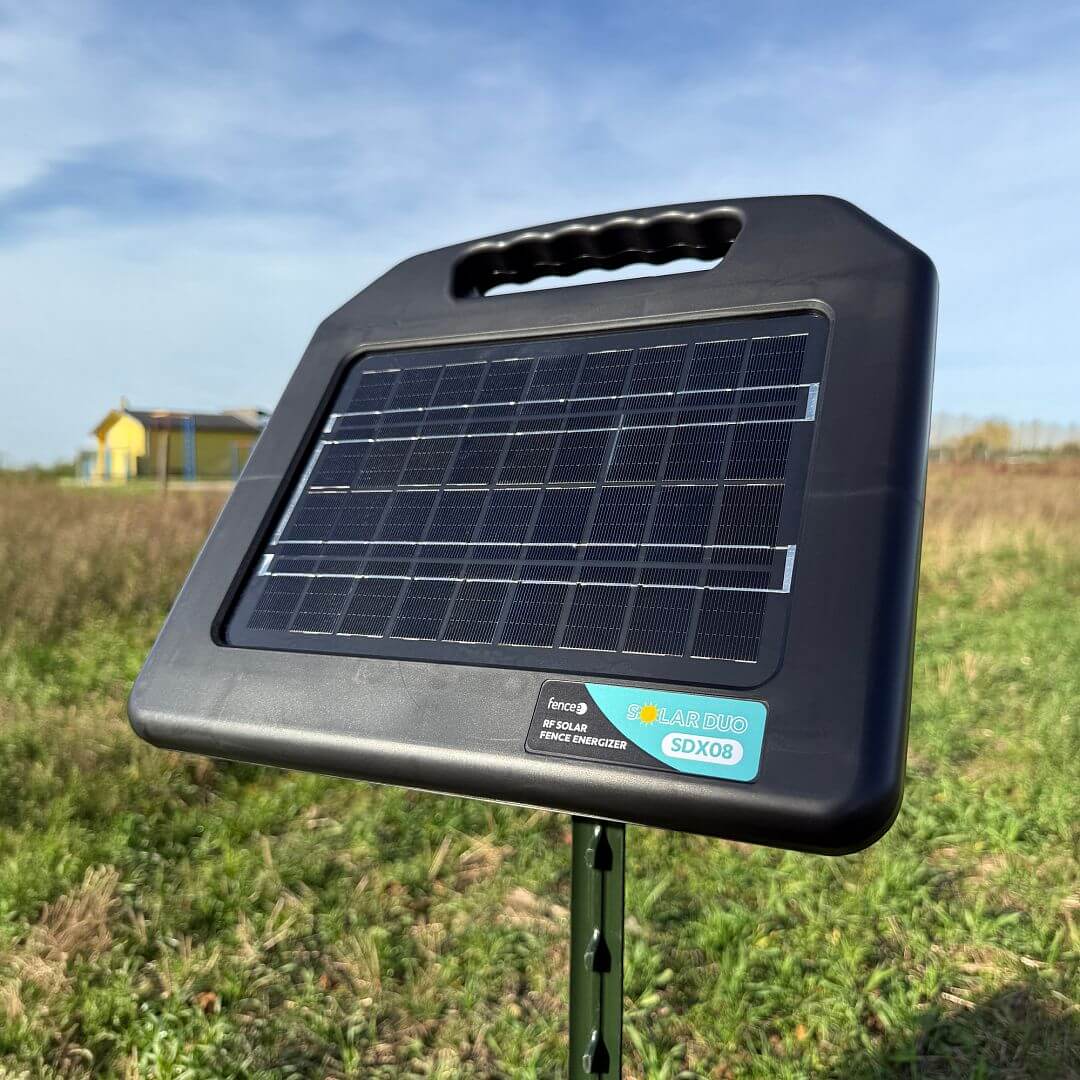

High-quality integrated solar panel with 8 W power
The solar panel suitable for outdoor use is weather and UV resistant. It allows automatic recharging of the fence energizer and ensures maintenance-free operation of the electric fence during the summer months.

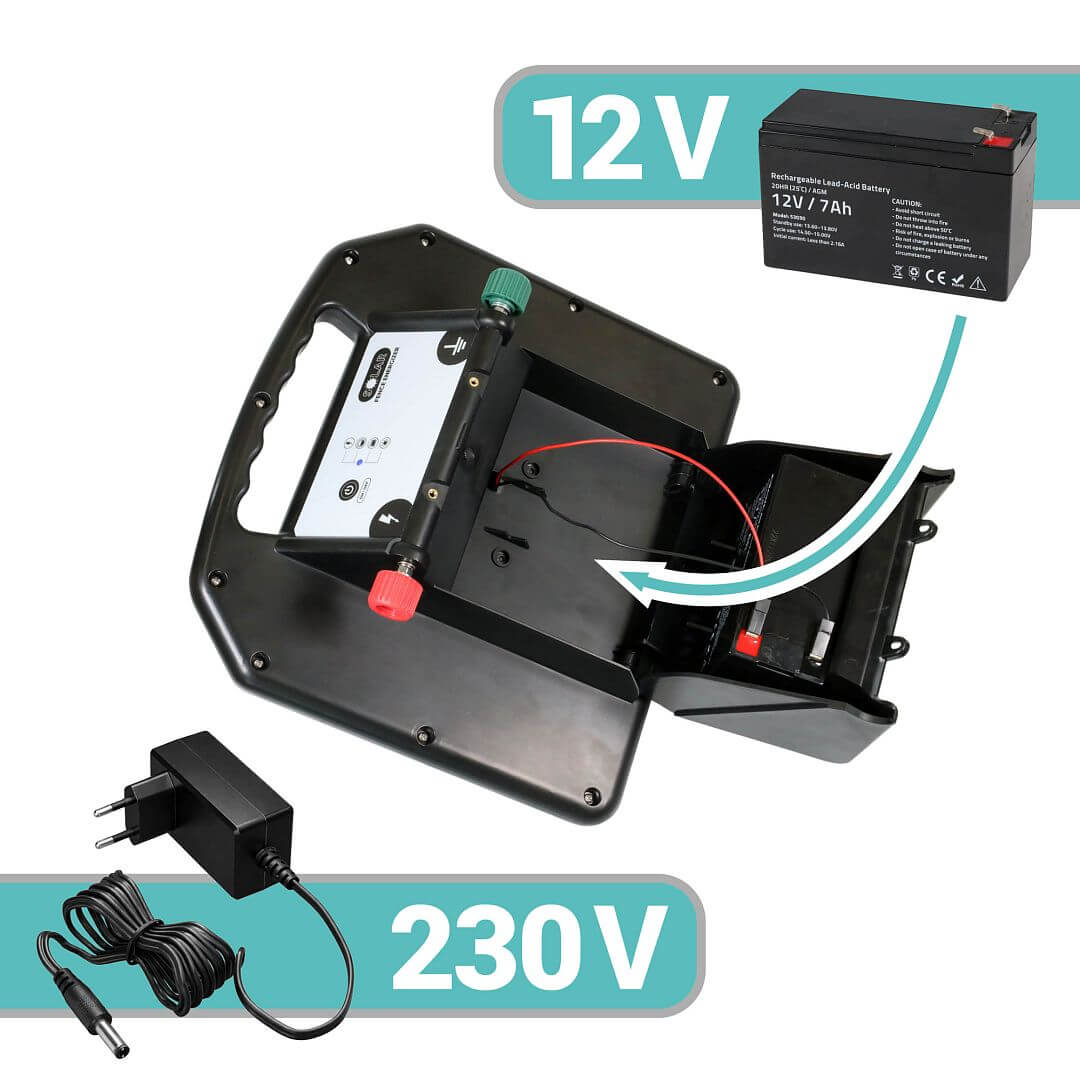

Powerful 7 Ah 12V gel battery with long life
A powerful gel battery for the fencee portable solar fence that can be purchased and easily replaced if required. The device has a battery status indicator and deep discharge protection for the longest possible battery life of up to 10 years.
Automatic power adjustment, Battery management and Power saving mode

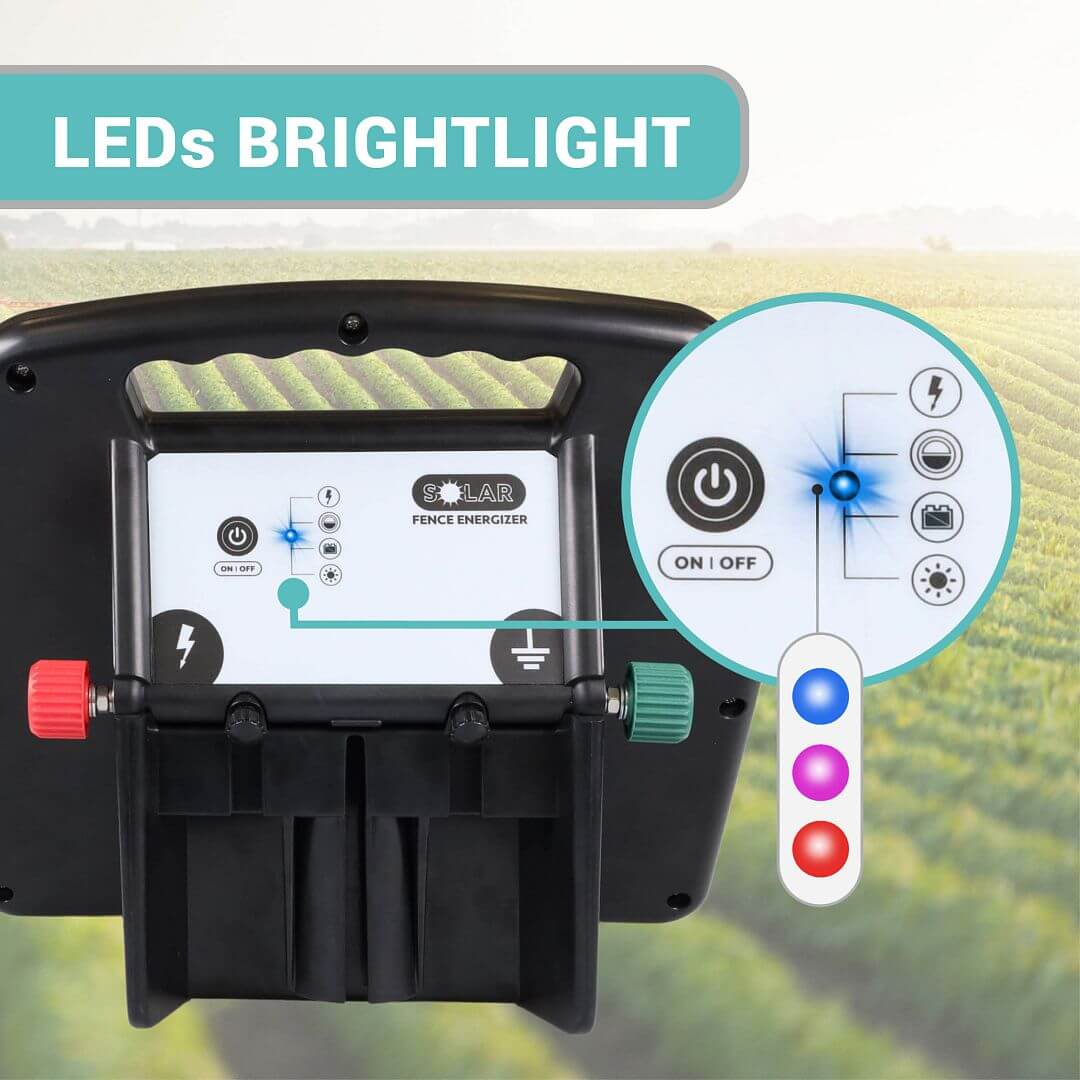

A microprocessor controls the operation of the device, adjusting the optimum power of the energizer and ensuring maximum efficient use of the battery. Power Saving Mode allows a long press of the ON/OFF button to switch the energizer to a slower mode where the interval between pulses is approximately twice as long. Switching to power saving mode significantly saves battery power.

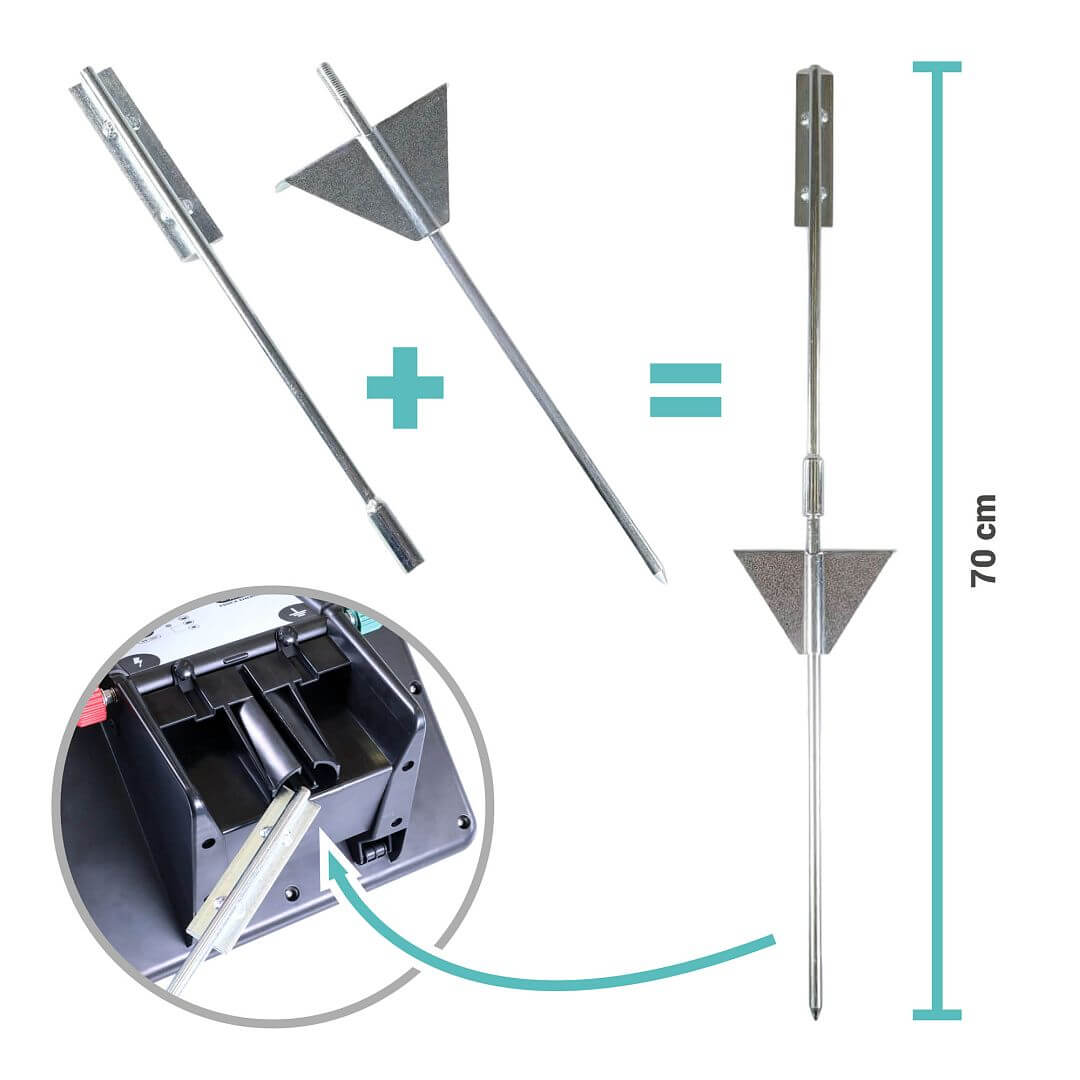

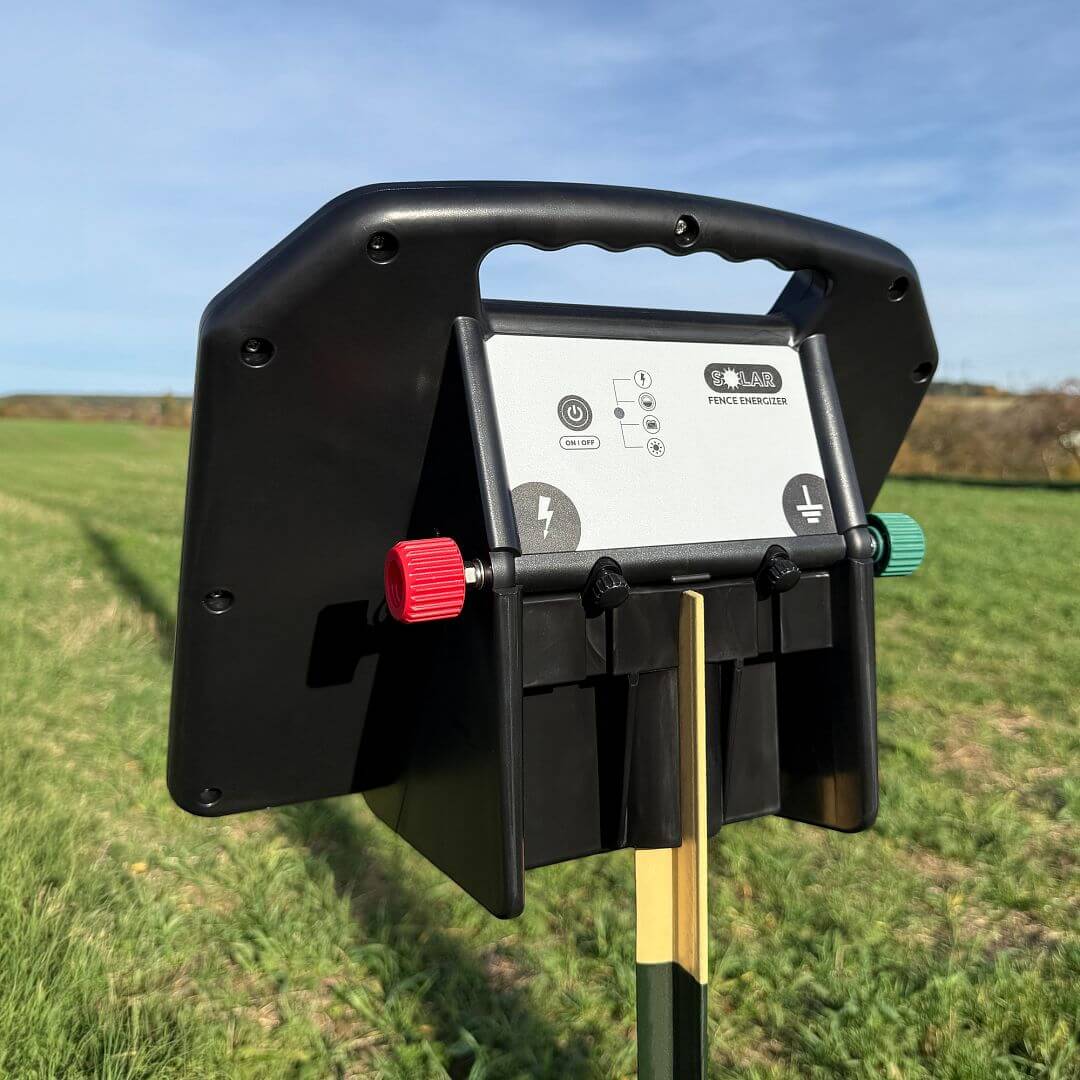

Compact solar fence with practical 360º mounting on a T/U post
The mounting bracket on the rear of the device allows the fence to be attached to a special mounting and also earthing pole (included) at any location. For correct orientation of the solar panel to the sun, use the 360º rotation option. The device can also be mounted on a T-post or universal U-post.
Waterproof shockproof housing with built-in lightning protection
Designed for outdoor use, the device is rain and UV resistant. IP44 protection. The input connector for connecting the mains adapter is waterproof. The energizer has integrated lightning protection.
Package contents:
- solar RF energizer fencee
- gel battery 12V 7 Ah
- integrated solar panel 8 W
- mounting and grounding rod for fencee solar DUO SD
- Power adapter fencee DUO 14 V 1.5 m
- Connecting cable 100 cm (eyelet-heart)
- ground cable 150 cm (eyelet-mesh)
- fencee warning plate
- operating instructions
- THE PACKAGE DOES NOT INCLUDE THE REMOTE CONTROL!
In case you want to run the energizer on solar panel and battery only, you need to charge the battery before putting it into operation. Plug in the mains adapter and leave the energizer in this state for approximately 10 hours, the battery will be recharged even when the device is switched off. If the ground is dry, several additional ground rods should be used
Kit with an RF remote control for controlling the solar fence at a distance of 10 km can be found here:
Portable electric fence RF energizer fencee solar DUO RF SDX08 with controller
Smart solar RF energizer with 0.8 J power with solar charging of the fence. Complete with…
Get maximum visibility with the fencee Cloud app
In case you want to control the fence with your mobile phone at an unlimited range, get the central WiFi Gateway device as well. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere, anytime.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 1,4 W |
| Energizer consumption 12 V | 60 mA |
| Output energy | 0,8 J |
| Input energy | 1 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 4500 V |
| ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| fencee Cloud connection | |
| LED indication | |
| Power Save mode | |
| Remote control | |
| Data encoding | |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 30 km |
| Low vegetation | 15 km |
| Medium vegetation | 10 km |
| High vegetation | 4 km |
| Earthing 1 m | 1 × |
| El. fence nets | 3 × |
| Weigth | 4600 g |
| Dimension | 37×22×33 cm |
| Solar panel | 8 W |
| Solar panel consumption | 0,75 mA |
| Operation without sun | up to 10 days |
| Maximum power voltage (Vmp) | DC 18V |
| Maximum power Current (Imp) | 0,47 A |
| Open circuit voltage (Voc) | 22,3 V |
| Short circuit current (Isc) | 0,3 A |
| Solar panel dimension | 30,3×21,3 cm |
