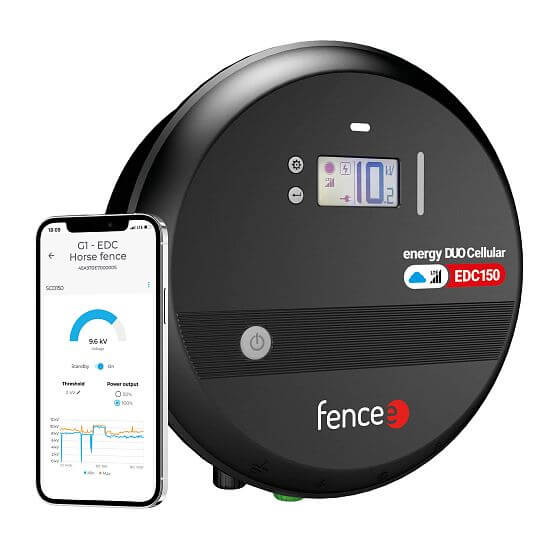

Product´s description Smart LTE electric fence energizer fencee energy DUO Cellular EDC150
Smart LTE energizer for electric fence with 15 J power suitable for various types of fences where maximum efficiency, reliability and safety must be ensured. Simple connection and control from a smartphone with OS Android or iOS.
Smart LTE energizer use the MOST MODERN TECHNOLOGY AVAILABLE
The smart LTE electric fence energizer allows direct connection to the free fencee Cloud app and the internet via the latest e-SIM technology, allowing the device to be controlled from an unlimited distance. Thanks to NB-IoT technology, the device is always online on the GSM mobile network.
Constant overview of the device's function thanks to alert notifications
Receive alert notifications to your mobile phone in real time, e.g. when the voltage drops below a set minimum value or when the battery is low. Get information about the current status of the fence 24/7, monitoring of measured values and parameters. Power control in the app. Possibility to share individual devices with other app users.
Device monitoring with GPS function, MOTION SENSOR and battery backup
The GPS tracking function of the device is still active after the energizer is disconnected from the mains thanks to a small backup battery. The motion sensor records every movement and you can track the device on a map using the app, if the device is stolen you will be notified immediately in the app. Learn more about the features and capabilities of Cellular's LTE energizer.
Powerful 15 J energizer with DUO POWER for maximum flexibility
Powerful combined 12/230V energizer suitable for cattle, sheep, goats, horses. Also for protection against wolves, forest animals and wild boars. Green and yellow clamp with reduced output for use with smaller animals or youngsters.
Package contents:
- fencee LTE energizer including backup battery
- 14 V / 2 A power adapter
- 150 cm ground cable (eyelet to eyelet)
- 100 cm connection cable (eyelet-heart)
- battery cable for connecting the power supply to the battery
- fencee warning plate
- operating instructions
Smart Cellular LTE energizer for electric fencing have won the Zlatý Klas 2023 award, which is given to modern products at the prestigious Země Živitelka exhibition. In addition, it was also awarded the GRAND PRIX 2024 at the TECHAGRO exhibition.
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 6 - 21 W |
| Energizer consumption 12 V | 470 - 1400 mA |
| Output energy | 15 J |
| Input energy | 20 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 8000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |
| TEOR. max. CEE | 350 km |
| Low vegetation | 120 km |
| Medium vegetation | 28 km |
| High vegetation | 16 km |
| BLUETOOTH | 4.1 |
| LTE | Cat M1 + NB1 |
| Earthing 1 m | 6x |
| El. fence nets | 38x |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3301 g |
Manuals and files for downloading
Manual - fencee energy DUO Cellular EDC (CZ,EN,PL,HU)FAQ
Go to How-to guide
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
