Smart Farm electric fence set - RF source 15 J, controller - WiFi Gateway - MX10 monitor

Smart electric fence set Modern Smart Farms fencee designed for connection to the fencee Cloud app and subsequent management and control of all connected RF devices via mobile phone, tablet or computer. The set includes the MX10 Control Monitor, which is used to monitor the voltage on the fence, in critical or hard-to-reach areas. It also includes a handy remote control.

Smart fencee fence with 15 J

Thanks to its high power with controllability, this smart fence power supply can be used for almost all animal species. From smaller goats, sheep or ponies to large animals such as cattle, horses, pigs. The energizer also serves as protection against forest animals and wild boars.The energizer has a yellow clamp for a second lowered output, this can be used for pens with young animals, smaller animals or can be connected to the lower line of the fence wire. The large LCD display clearly informs you of all important values on the pen or energizer. LED lights and BARGRAF on the front, are clearly visible even in daylight. They indicate the operation of the power supply, the voltage on the fence and signal any malfunction of the fence.

Central and control unit

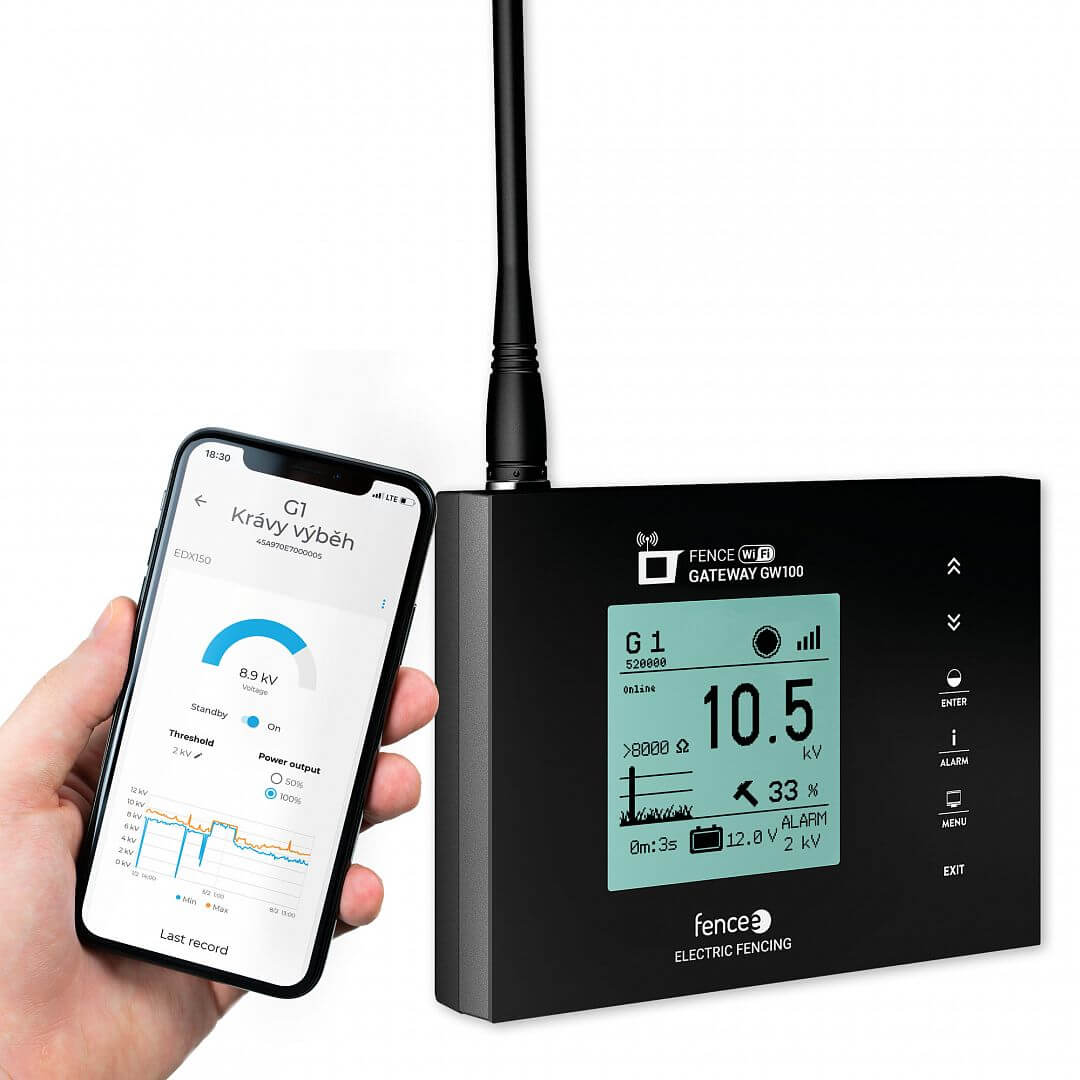

Use the central FENCE WiFi GATEWAY GW100 to pair all Smart Farm RF products and get an overview of information from individual energizers and control monitors. These can then be controlled at any time and from anywhere in the world via the fencee Cloud mobile or web app. Control up to 12 RF devices via 1 central WiFi Gateway. No registration fees or SIM cards are required for operation. No additional expenses, minimizing your costs for operating your smart electric fence.

“The new electric fence system enables us to have our paddocks under constant control and facilitates the identification of a particular point of failure. It’s a really unique system in all respects.”

Director of Zoo Zlín Ing. Roman Horský

Read full article

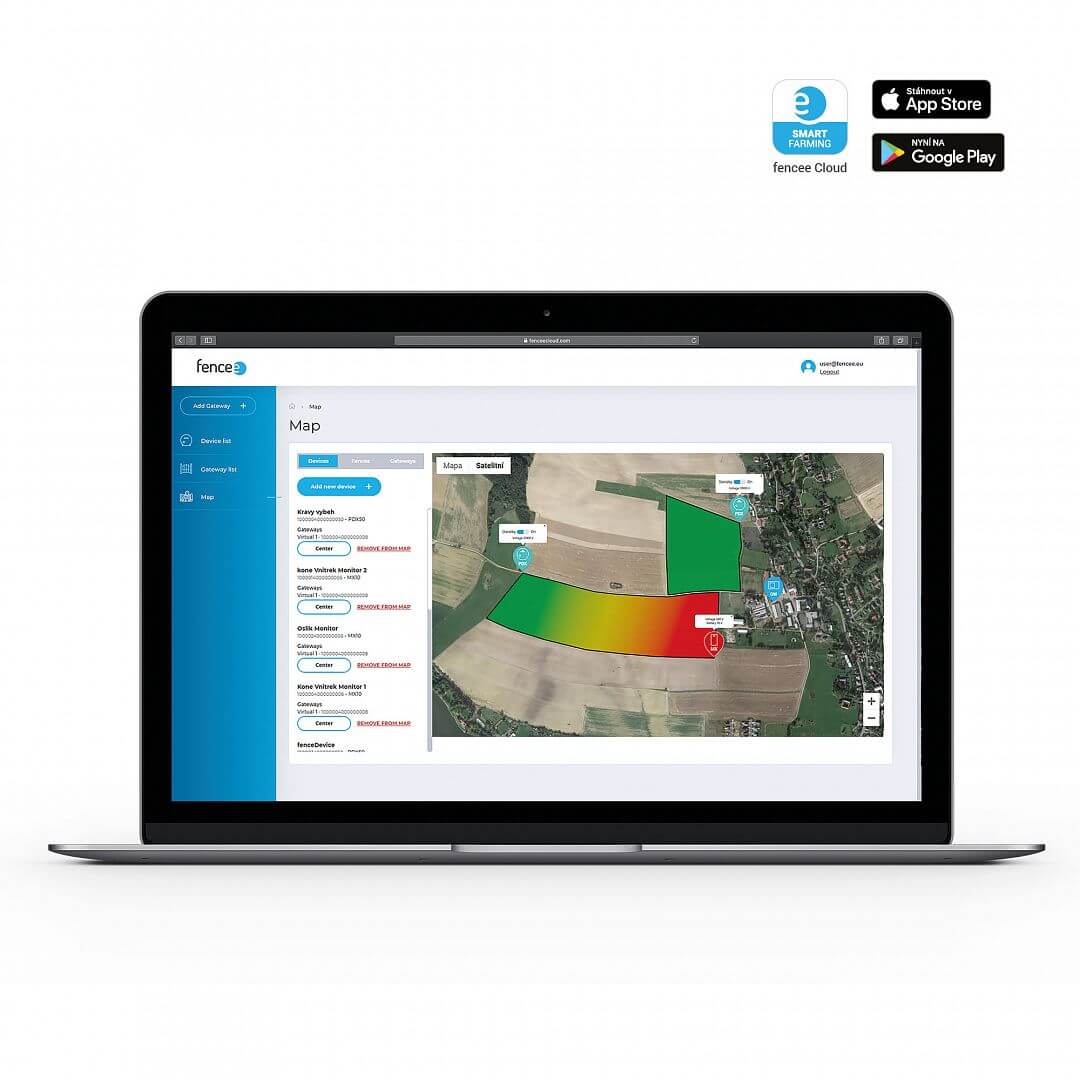

Cloud collects data from RF energizers and control monitors. Using a central gateway, you can then easily set up and control individual devices from one location, using a mobile app or web interface. Through fencee Cloud, you not only control the energizers, but also monitor them with notifications that appear instantly on your phone or email.

Base and external RF antenna

The basic radio frequency (RF) communication range between the energizer and the gateway is up to 10 km in normal terrain and built-up areas. In difficult hilly or densely wooded terrain, the range is reduced, while in open areas it can be much longer. To increase the RF signal range between the energizer and the gateway, we recommend using an external antenna, which can increase the communication range up to 30 km. See the article with instructions on how to properly install an external antenna to ensure the most efficient RF signal transmission.

Monitoring device as a GIFT

The MX10 Monitoring Monitor measures the voltage value on the fence. If the voltage drops below the set value, the monitor sends an immediate signal to the Gateway, which triggers an alarm. Control monitors have several installation options, one case is installation on the gateway. It is also common to install them at critical and hard-to-reach areas of an electric fence, such as by a river. Read more about the installation options and uses of the MX10 monitor.

A handy remote control

The remote control conveniently and safely switches the power on/off of the electric fence from up to 30 km away. The remote control has a backlit display with all important information, an audible alarm and receives error messages, e.g. when the voltage in the fence drops. More about remote control for RF energizers.

Combined power supply

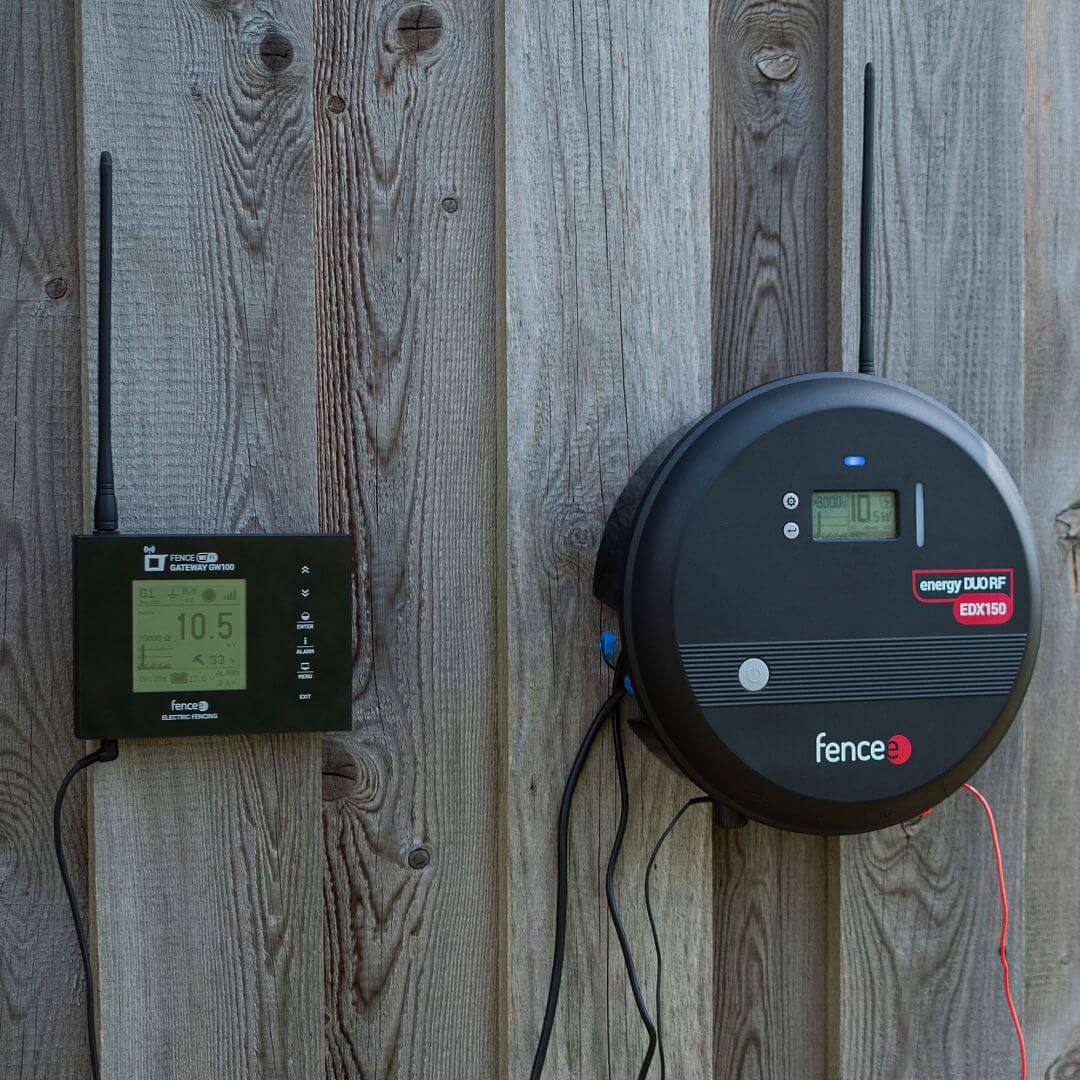

The powerful EDX150 combined energizer can be powered using a 230 V mains adapter. Alternatively, you can use a normal 12 V car battery, which is particularly suitable as a backup power source in the event of a power failure. The central FENCE WiFi GATEWAY GW100 is powered by a 230 V mains adapter as standard. In the event of a power outage, it is equipped with a backup power supply that supplies power for up to 12 hours.

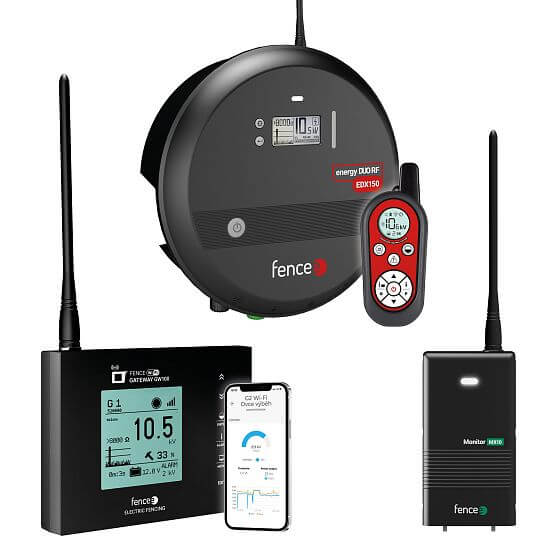

Package contents:

• fencee energy DUO RF EDX150 energizer
• central control device FENCE WiFi GATEWAY GW100
• Monitor MX10 monitoring device
• remote control for RF energizers

Included with the energizer:

• 1× fencee DUO 14 V 2 A power adapter, 1.5 m power cord length
• 1× earthing cable 150 cm (eyelet to eyelet)
• 1× connection cable 100 cm (eyelet-heart)
• 1× battery cable for connecting energy RF to the battery
• 1× basic RF antenna
• 1× fencee warning plate
• operating instructions

Included in the package FENCE WiFi GATEWAY GW100

• 1× basic RF antenna
• 1× 14 VDC power adapter
• 1× 9.6 V battery back up power supply
• 2× screw and dowel for installation
• operating instructions

Included with the MX10 Monitor

• 1× basic RF antenna
• 2× type C LR14 batteries
• 1× 100 cm connection cable
• 1× ground cable 150 cm with ground pin
• 2× pull-tabs for easy mounting of the monitor
• 1× magnet with lanyard for hanging on the neck
• operating instructions

Case Studies Smart Farms fencee Cloud

See how Smart Farm helps several of our customers with the fencee Cloud app, including a zoo, a cattle farm, a sheep farm or a horse ranch.

Mr. Cieslar's truly amazing helper - Smart Farm fencee

"The remote control and online monitoring of the electric fencing is truly amazing helper. It saves me nerves and at least 50% of the cost and time."

Ing. Roman Cieslar, Chairman SCHOK

Read more

Smart Farm saves us

2 hours per day
7 days per month

662 € monthly
7 944 € per year

Return
in 5 months

Smart Farm in Zoo Zlín I.: System installation

“The new electric protection system enables us to have the electric fencing under constant control and facilitates the identification of a particular point of failure.”

Director of Zoo Zlín Ing. Roman Horský

Read more

Smart Farm saves us

3 hours per day
11 days per month

1.051 € monthly
12.612 € per year

Return
in ´1 year

Smart Farm in Zoo Zlín II.: System in operation

"We appreciate the online monitoring the most, where we can clearly see the status of individual electric fences. Last but not least, we appreciate the substantial time savings for individual workers when searching for a fault in a fence or during routine inspections."

Electric fence manager Vlastimil Mizera

Read more

Smart Farm saves us

3 hours per day
11 days per month

1.051 € monthly
12.612 € per year

Return
in ´1 year

Smart Farm in Zoo Zlín III.: Continuation of successful cooperation

"Thanks to the Smart Farm system, I can be sure that all the electric fences are working correctly. What we appreciate most is the online supervision, where we can clearly see the status of individual fences. So we can be completely calm, we control and check everything immediately from the phone or computer."

Electric fence manager Vlastimil Mizera

Read more

Smart Farm saves us

3 hours per day
11 days per month

1.051 € monthly
12.612 € per year

Return
in ´1 year

Agricultural Cooparetive Vlkov under the supervision of Smart Farm

"With the fencee Cloud system, I can be sure of the correct operation of all electric fences. The constant supervision of the electric fencing makes our work much easier. I can control the fence from my phone wherever I want, and I see that as a great time-saving opportunity."

zoo technician Ing. Josef Šmíd

Read more

Smart Farm saves us

2 hours per day
7 days per month

717 € monthly
8 604 € per year

Return
in 6 months

Smart Farm makes everyday life easier at Coldriver Ranch

"Controlling the electric fence with a mobile phone is a great gadget. You only realize it when you try it yourself. With one click I can switch off the power whenever I want. Before, Junior had to help with this and always ran to switch off the energizer."

Owner Mr. Eman Hanyk

Read more

Smart Farm saves us

1 hour per day
28 hours per month

402 € monthly
4824 € per year

Return
in 5 months

Smart Farm with fencee Cloud app at the sheep Farm Petrlak

"Before we got the smart RF energizer fencee, we had to walk to the old energizer every time, or call someone to turn it off - trial and error ensued to see if the fence was still energized or not."

Owner Mr. Vlastimil Petrlak

Read more

Smart Farm saves us

1 hour per day
4 days per month

413 € monthly
4956 € per year

Return
in 5 months
