Product´s description Expert solar fence kit - Complete security box + energizer power DUO 3 J, 100 W panel, polywire 3 mm
A practical solution for operating the fence in places without electricity during the season. The solar-powered fence set is suitable for electric fencing, e.g. for cattle or goats.
Security box for energizer and battery, Mounting mandrel and 10 A regulator included
Security box for the electric fence energizer and battery. Electrifiable metal battery box with robust mounting mandrel. The box can be connected to the fence energizer, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee energizer. 10 A regulator for 100 W solar panel.
Security box features:
- robust box made of galvanized steel
- stable mounting mandrel to the box
- internal ground connection for the fence energizer
- all wires inside the box
- high voltage box - excellent protection against theft
- insulated keys for safe unlocking of the box
- external dimensions of the box: 37 × 37 × 34,5 cm (W×D×H)
3 J electric fencee energizer with combined power supply
Electric fence energizer 12/230 V with 3 J. The fence can be used anywhere thanks to the solar battery charging. BrightLight LED on the front of the device indicates the operation of the energizer. Possibility to switch the power to 50 %, SafeShock technology, ON/OFF button for safe energizer control and several other features of fencee power DUO PD energizers.
Combined energizer fencee power DUO PD30
100 W solar panel for electric fence
The location of the solar panel must be chosen to be south facing and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel. The fence energizer cannot be powered by the solar panel alone, the battery and controller must always be connected at the same time.
Mounting bracket for attaching the 100 W solar panel to the security box
Mounting bracket for mounting the 100 W solar panel on the security box. Consists of 4 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.
Instructions for assembling the mounting bracket
Accessories for assembling the electric fence
White plastic posts 20 pcs with a total length of 156 cm, 136 cm above the ground. Green and white high-quality fence wire with a diameter of 3 mm in a 400 m coil, 3 × 0,25 stainless steel and 3 × 0,20 copper (resistance 0,1 Ω/m). The set also includes a ground rod.

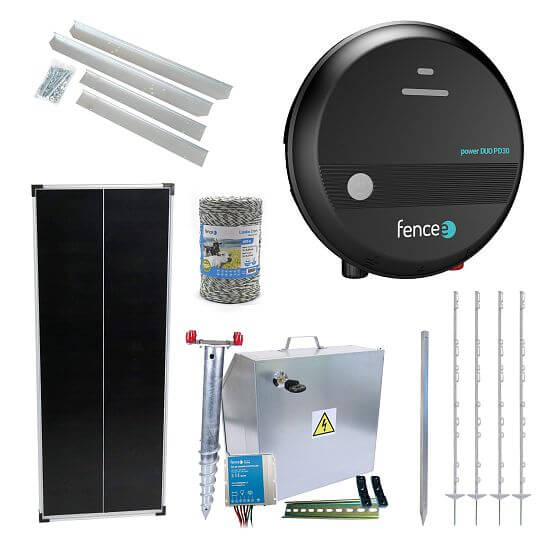

Package contents:
- security box for fencee energizer with DIN rail, mounting mandrel and 10 A regulator
- combined fencee power DUO PD30 energizer
- solar panel with 100 W output
- mounting bracket for attaching the 100 W solar panel to the security box
- polywire for electric fence, diameter 3 mm, green-white
- earthing rod profile, galvanised 100 cm
- 20 × plastic posts, length 156 cm
The following accessories can be purchased with the solar fence kit:
Battery for electric fence 12 V 44 Ah
High quality and reliable car battery, suitable for use with electric fence. Ergonomic…
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 5 W |
Energizer consumption 12 V | 80 - 240 mA |
Output energy | 3 J |
Output voltage | 11200 V |
Input energy | 4,5 J |
LED ON/OFF | |
Output voltage 500 Ω | 6400 V |
ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 100 km |
Low vegetation | 23 km |
Medium vegetation | 5 km |
High vegetation | 2 km |
Earthing 1 m | 2 × |
El. fence nets | 6 × |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1451 g |
