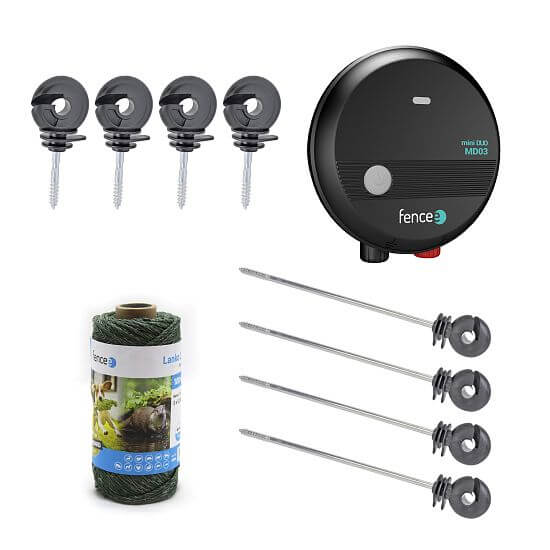

Product´s description Set of electric fence for fence against cats and pests, DUO energizer, polywire 100 m, insulators 45 pcs
Practical electric fence kit suitable for keeping cats and pests out or inside your garden.
Two types of insulators with short and long screws, PLUS-MINUS wire routing
Screw the screw-on insulators onto your fence to suit your needs. For the installation of an electric fence with Plus-Minus wiring , so-called without earthing. The conductors of the electric fence are routed parallel to each other (Plus-Minus) and a pulse occurs when they are connected. The distance between the wires must be chosen so that an animal cannot penetrate between the wires without touching both wires at the same time. Especially suitable for protecting your home and garden from various pests.
Read more about Plus-Minus electric fence lines
Combined 230/12 V energizer fencee mini DUO MD03
A complete fencee mini energizer set with the fencee mini DUO MD03 0,3 J energizer, which can power a fence up to 5 km long. A small portable fence energizer with the possibility of switching to power saving mode, which will significantly extend the life of the connected battery.
A modern fence energizer with microprocessor technology that adjusts the optimal power output of the device. BrightLight LED on the front of the device indicates the operation of the energizer. Energizer housing made of high quality weather, rain and UV resistant plastic. SafeShock technology, ON/OFF button for safe operation and shutdown of the energizer and several other features offered by the fencee mini DUO MD energizer.
Package contents:
- combined energizer fencee mini DUO MD03
- 1× green polywire 2,5 mm, 100 m, stainless steel 3 × 0,2 mm
- 1× classic round insulator for electric fence - 25 pcs
- 2× insulator with long screw 220 mm - 10 pcs
The individual items can be reordered according to your needs and the length of your installation.
Energizer included:
- 1× power adapter fencee DUO 14 V 1,5 m
- 1× ground cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× fencee DUO battery cable 1,7 m
- 1× warning plate
- 1× operating instructions
Energizer consumption 230 V | 1 W |
Energizer consumption 12 V | 20 - 40 mA |
Output energy | 0,3 J |
Output voltage | 9000 V |
Output voltage 500 Ω | 3000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LED indication | |

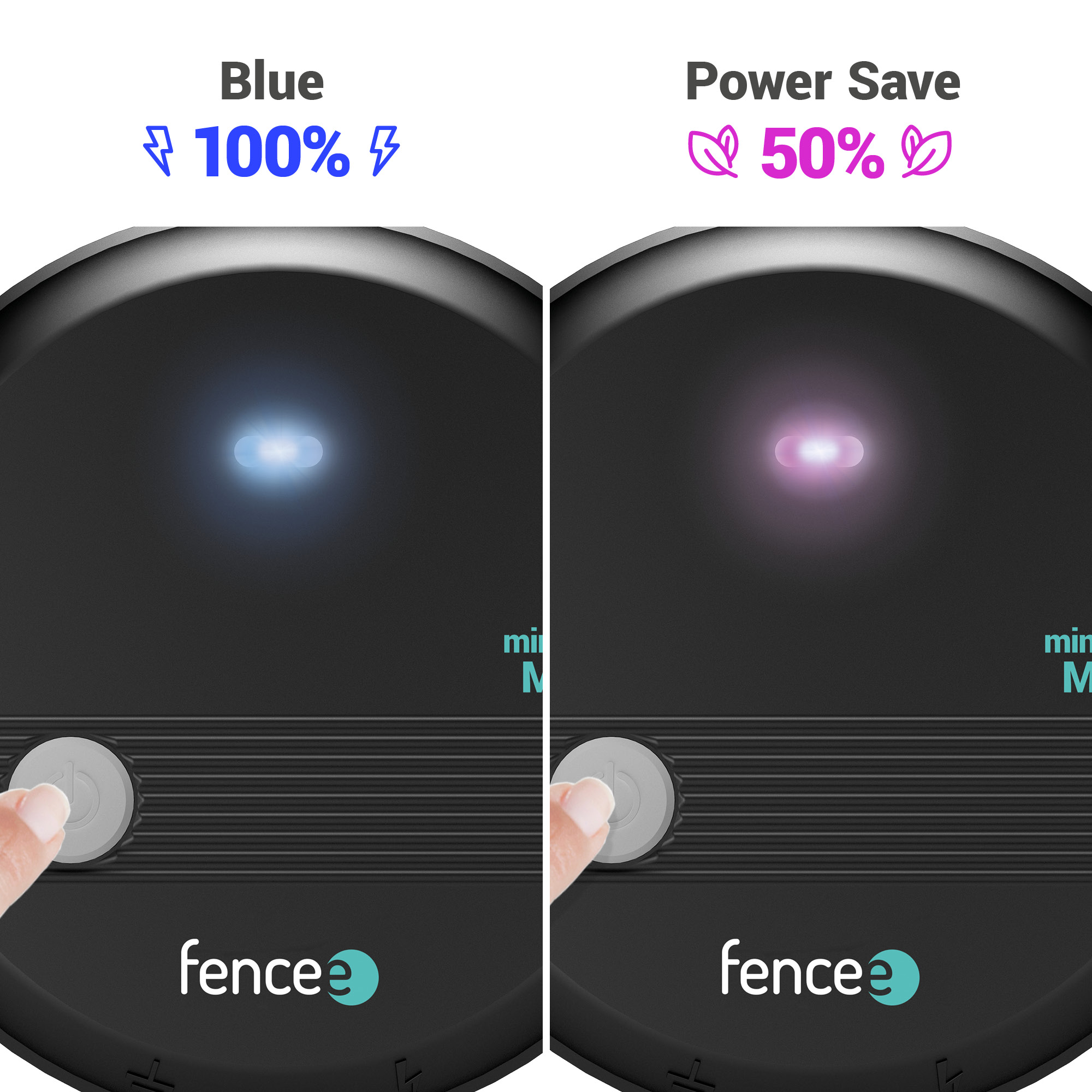

Power Save mode | |
TEOR. max. CEE | 12 km |
Low vegetation | 5 km |
Medium vegetation | 3 km |
High vegetation | 0,5 km |
Earthing 1 m | 1 × |
El. fence nets | 1 × |
DIN rail | |
Diameter | 150 mm |
Depth | 57 mm |
Weigth | 729 g |
