Product´s description Smart Farm electric fence system – RF energizer 15 J – WiFi Gateway GW100 – 3 × Monitor MX10
Complete set with smart electric fence system Modern Smart Farm fencee. Connect to the fencee Cloud app and manage all connected RF devices via mobile phone, tablet or PC. Remote control and online monitoring of your electric fence conveniently from wherever you need it. Includes three monitoring devices Monitors MX10 that measure and monitor the voltage value in the electric fence. The smart electric fence system with the high-performing 230 V/12 V energizer fencee energy DUO RF EDX150. A suitable solution for the most demanding fences up to 120 km.
100% OVERVIEW OF ELECTRIC FENCE with fencee smart RF energizer
DUO 230 V/12 V smart RF energizer fencee enegy DUO RF EDX150 with an output power of 15 J. Alerts on your mobile phone, e.g. for a drop below the set minimum voltage value or a low battery. Get online information about the status of the fence 24/7, tracking the measured values for the last 7 days. Switching the output power in the app. High-performing electric fence energizer for cattle, sheep, goats, horses. Also for protection against wolves, game and wild boars. Yellow terminal with reduced output. Functions of energy DUO RF EDX energizers
Early problem detection FOR ELECTRIC FENCE SAFETY
Get the benefit of online monitoring of electric fences and receive alerts on unexpected situations. Monitor your electric fences in real-time and receive alerts in the event of a power loss. With online information on your mobile phone, you minimize the occurrence of unpleasant situations.
Electric fence manager
Vlastimil Mizera
Read full article
Constant OVERVIEW OF VOLTAGE VALUE with the Monitor MX10
Monitor MX10 measures the voltage value and records the parameters of the electric fence, which can be viewed retrospectively in the fencee Cloud app. A minimum voltage value (e.g. 3000 V) can be set for each fence. If the voltage drops, an alarm is triggered. 100% overview allows you to prevent situations and cases where an animal may be lost or injured. Functions of Monitor mx10
WiFi Gateway for UNLIMITED COMMUNICATION

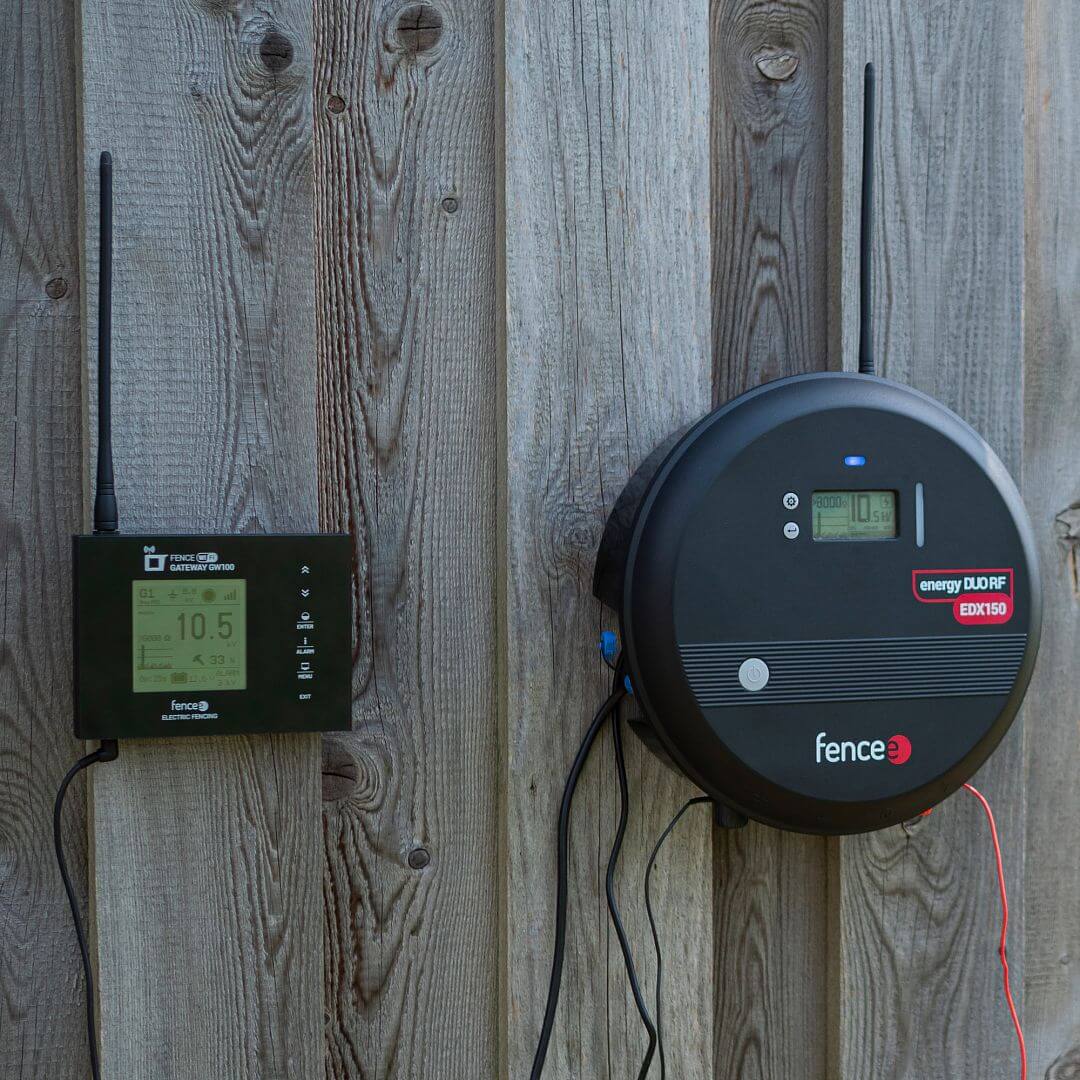

The central device FENCE WiFi GATEWAY GW100 is connected to the fencee Cloud and paired with a smart RF energizer. Command and control device that mediates communication between your phone, RF energizer and monitoring device. Up to 12 devices can be added per Gateway. Through the Gateway, you control individual fence devices from your phone, tablet, or PC using the free fencee Cloud app.

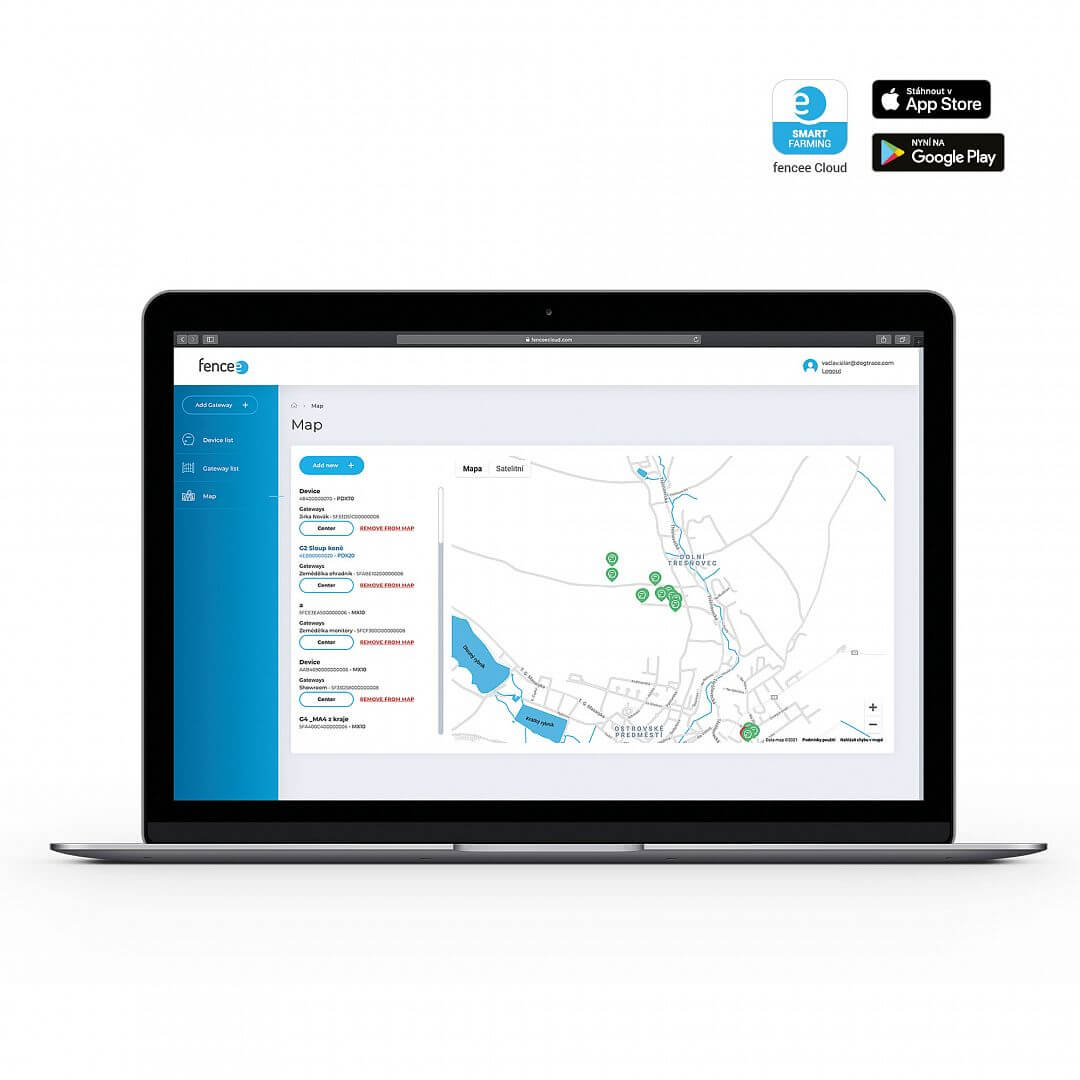

Cloud storage collects data from the RF energizers and monitoring devices Monitors MX10. Thanks to the central gateway you can easily set up and control individual devices, using the mobile app or from the web interface. Thanks to the Cloud, you control the energizers, but also check them with online notifications that appear instantly on your phone or email. fence wifi gateway gw100 features
Cloud data storage and ACCESS FROM ANYWHERE
Monitor your electric fence in real-time and receive online notifications in the event of a fault. Peace of mind with online information on your mobile phone. Get additional benefits such as plotting fences on maps, setting up virtual fences and sharing devices, assigning rights to control certain functions.
Basic and external RF antenna, communication with NO FEES
Communication between RF devices using RF technology. Free radio frequency - no operating costs. The standard range between the gateway, monitor and RF energizer with the basic RF antennas is 10 km. If you need to increase the signal range, use an external antenna to increase the transmission quality and signal range between devices up to 30 km.
If you need any advice, please feel free to contact us, we will be happy to help you.
Package contents:
- 1× fencee enegizer energy DUO RF EDX150
- 1× central control device FENCE WiFi GATEWAY GW100
- 3× monitoring device Monitor MX10
Included in the energizer package:
- 1× fencee DUO 14 V 2 A power adapter, 1.5 m power cord length
- 1× ground cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× battery cable for connecting to the battery
- 1× basic RF antenna
- 1× fencee warning sign
- operating instructions
Included in the package FENCE WiFi GATEWAY GW100
- 1× basic RF antenna
- 1× 14 VDC power adapter
- 1× 9.6 V battery backup power supply
- 2× screw and dowel for installation
- operating instructions
Included with the Monitor MX10
- 1× basic RF antenna
- 2× type C LR14 batteries
- 1× 100 cm connection cable
- 1× ground cable 150 cm with ground pin
- 2× pull-tabs for easy mounting of the monitor
- 1× magnet with lanyard for hanging on the neck
- operating instructions
Case Studies with Smart Farm fencee Cloud system
See how Smart Farm with fencee Cloud helps several of our customers, including a zoo, a cattle cooperative, a sheep farm or a horse ranch.
| Energizer consumption 230 V | 6 - 21 W |
| Energizer consumption 12 V | 200 - 1250 mA |
| Output energy | 15 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 8000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |
| TEOR. max. CEE | 350 km |
| Low vegetation | 120 km |
| Medium vegetation | 28 km |
| High vegetation | 16 km |
| Earthing 1 m | 6 × |
| El. fence nets | 38 × |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3301 g |
Manuals and files for downloading
Modern Smart Farm fencee Cloud 2022 - Catalogue Manual FENCE WiFi Gateway GW100 Manual fencee energy EDX Instalation Options Monitor MX10 Manual fencee Monitor MX10FAQ
Go to How-to guide
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
