Product´s description Electric fence set for cattle, game, pigs, sheep and goats - energizer + polywire 400 m
Electric fence set for enclosing animals such as sheep, goats and cattle. Thanks to the electric fence, animals can move freely in the enclosed area where they are not in danger. The fence is also suitable for protecting your crops and land from forest animals, deer. It can also be used to protect your vineyard from deer or to protect your land from wild boar.
The basis of the complete set is the maintenance-free mains energizer of the fencee power P30 electric fence. With its 3 J output, the energizer is suitable for fences with installation lengths of up to 29 km. Simply plug the energizer into a 230 V socket using the included adapter and switch it on with the ON/OFF button.
The durable modern and waterproof design of the energizer with ON/OFF button on the front panel and the latest microprocessor technology inside, offers a practical and reliable solution for powering an electric fence. Highly luminous LEDs are clearly visible even in direct sunlight. They are located on the front of the energizer and indicate the operation of the energizer in colour. In the event of a fault in the fence, they change colour so you can react immediately. SafeShock technology and very low power consumption are further advantages of this energizer.
In the fence kit you will find a high quality green wire with a diameter of 2,5 mm, three stainless steel and one copper wire, which ensures maximum conductivity even in longer installations. The fence cable in a 400 metre coil is made of a strong material that is tear-resistant and has a long service life. Fencing heights of up to 136 cm are created using mobile plastic posts with 11 eyelets for individual wire pulling.
The complete electric fence set is very practical and easy to install.
Package contents:
- fencee power energizer P30
- 1 × green polywire 2,5 mm, 400 m, copper 1 × 0,25 + stainless steel 3 × 0,20 mm
- 15× post 156 cm (above ground 136 cm), 11 eyelets
- 1× earthing rod profile 100 cm
- 1× 12 kV diode tester, with earth connection
Included in the energizer package:

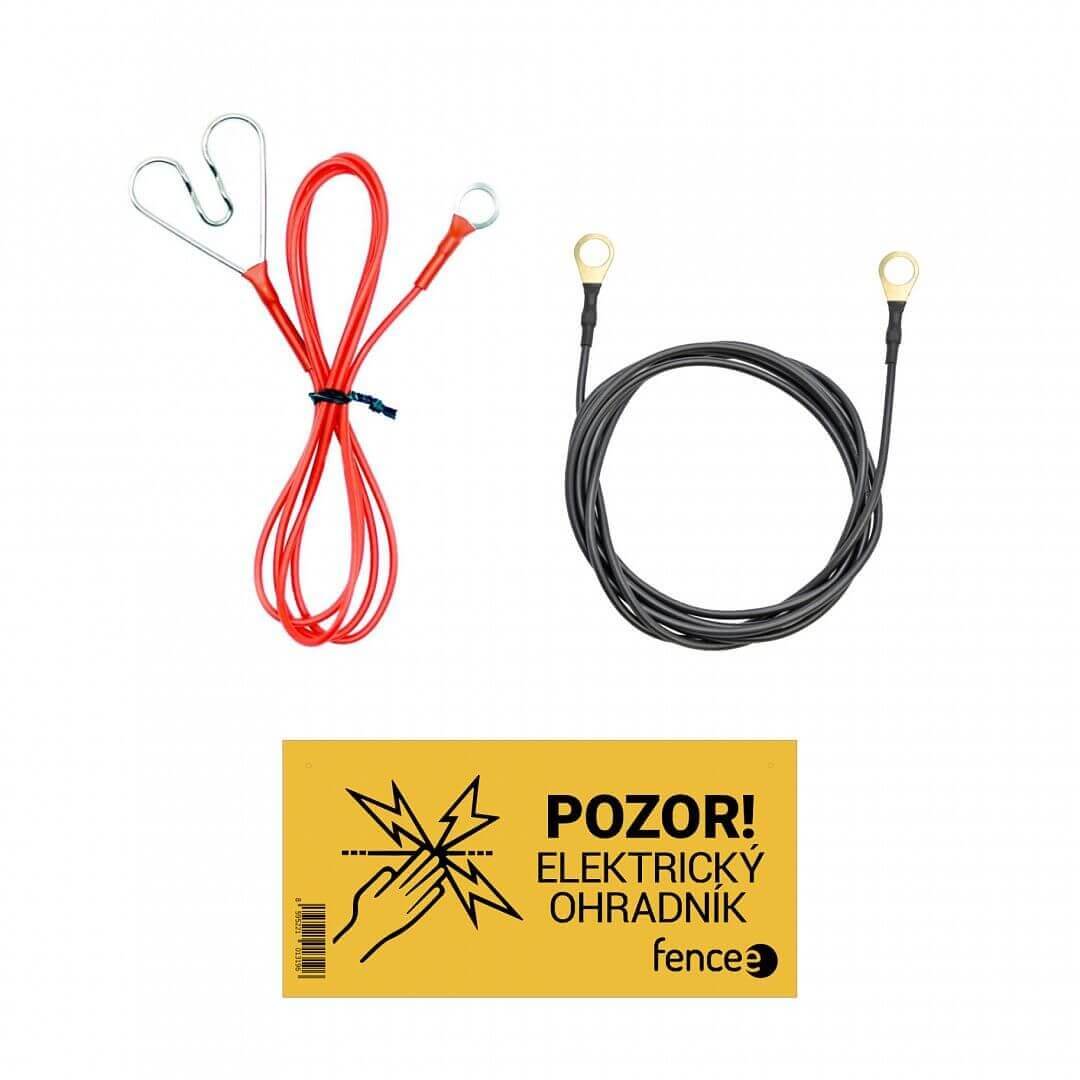

- 150 cm earthing cable (eyelet-mesh)
- connection cable 100 cm (eyelet-heart)
- fencee warning plate
- operating instructions
Power source | 230 V ~ |
Energizer consumption 230 V | 5 W |
Output energy | 3 J |
Output voltage | 11500 V |
Output voltage 500 Ω | 6000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED error check | |
TEOR. max. CEE | 100 km |
Low vegetation | 29 km |
Medium vegetation | 10 km |
High vegetation | 2 km |
Earthing 1 m | 2 × |
El. fence nets | 6 × |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1404 g |
