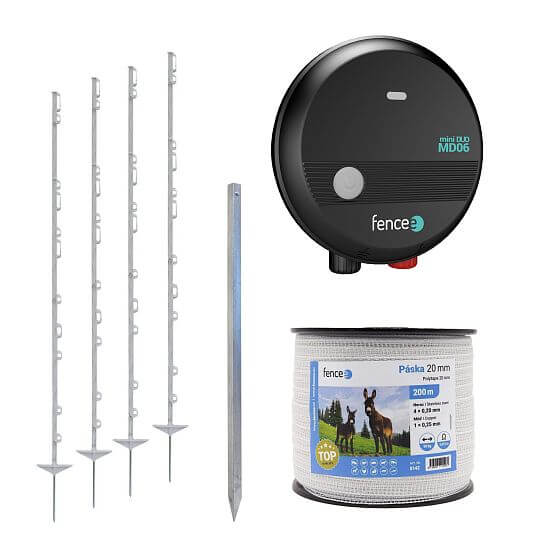

Product´s description Electric fence set for horses, ponies, donkeys and dogs - DUO energizer - polytape 200 m
Set of electric fence with complete equipment for the installation of a small fence for horses. Fence set with conductive tape and high plastic posts, especially suitable for horses and their young. The fencing set can also be used to demarcate space for the free movement of larger dogs in gardens and yards. The lightweight portable energizer with an output power of 0.6 J can power a fence up to 7 km long. The 156 cm white plastic posts have 11 loops for threading the wire through at several levels. Also included is a high quality conductive tape with copper wire for better conductivity.
The fencee mini DUO MD06 small fence energizer with combined 230V/12V power supply is the ideal choice for mobile electric fences and paddocks with horses. The new Power Save function saves the energy of the connected battery. When switched to power save mode, the interval between electrical pulses is approximately doubled. A fully charged battery can then power the fence for 50 to 55 days.
A state-of-the-art fence energizer with microprocessor technology that adjusts the optimum performance of the device. An energizer with very low power consumption. BrightLight LED light on the front of the device indicates the operation of the energizer. Housing of the device made of high quality plastic resistant to weather, rain, snow and UV radiation. SafeShock technology, ON/OFF button for safe energizer operation and several other features offered by the fencee mini DUO MD energizer.
The complete electric fence set is a practical and mobile solution with easy installation.
Package contents:
- fencee mini DUO MD06 energizer
- 1 × white polytape 20 mm, copper 1 × 0,25 mm + stainless steel 4 × 0,20 mm, 200 m
- 10× plastic post 156 cm (above ground 136 cm), 11 eyelets
- 1× earthing rod profile 100 cm
Included in the energizer package:
- 1× power adapter fencee DUO 14 V 1,5 m
- 1× earthing cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eye-bead)
- 1× fencee DUO battery cable 1,7 m
- 1× warning plate
- 1× operating instructions
Energizer consumption 230 V | 1,2 W |
Energizer consumption 12 V | 40 - 60 mA |
Output energy | 0,6 J |
Output voltage | 9500 V |
Output voltage 500 Ω | 3500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LED indication | |
Power Save mode | |
TEOR. max. CEE | 21 km |
Low vegetation | 7 km |
Medium vegetation | 5 km |
High vegetation | 1 km |
Earthing 1 m | 1 × |
El. fence nets | 2 × |
DIN rail | |
Diameter | 150 mm |
Depth | 57 mm |
Weigth | 733 g |
